Harley Davidson Softail - TC96
(2007-2010).
FXST TC96 2-Circuit Solution
The 2CS for the FXST TC96 provides 2 switched and fused
outputs. Each output can be split into 2 outputs using a CS
splitter cable ( giving 4 outputs ). Each output is capable
of 15 Amps maximum, with total current for the 2CS kit limited to 20 Amps.
The fuse holders hold the active fuse and a spare
fuse. Quality Yazaki stranded copper wire and Sumitomo
connectors. We don't offer the PC-8 or PC-8R kits due
to the space limitation, however they can be installed in
external bags and if you want such a kit
please
email us.

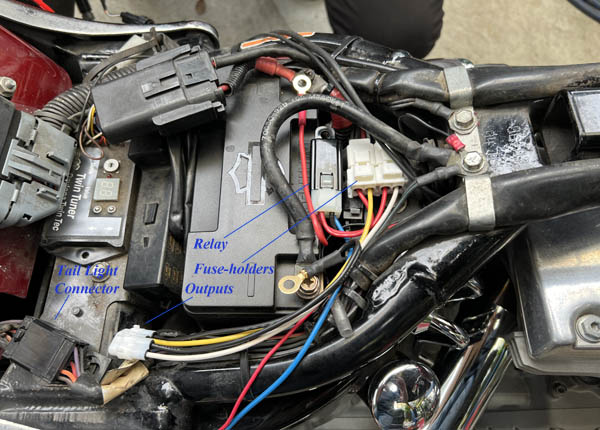

Fug 1: Partially installed kit |

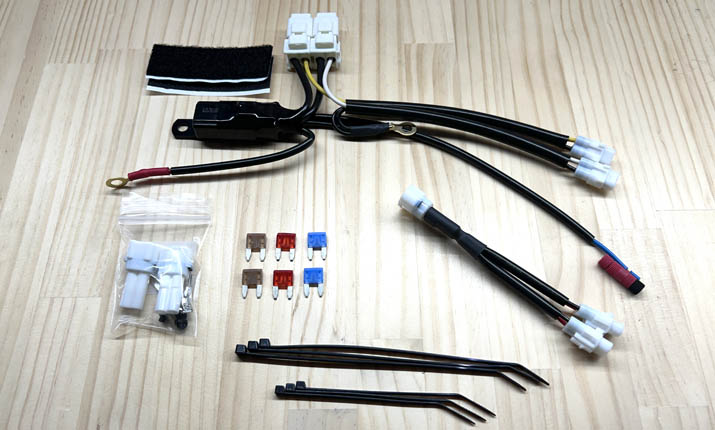

Fig 2: Kit showing included items
|
Not shown in above images, but the kits come with a modified Tail
Light Break Out cable that fits between the current tail
light connector.
So it is plug and play with no cutting, tapping or modifying
the OEM wiring harness.
|
2CS Kit for
FXST TC96 $42.95
|
NOTE:
The relay sits just in front of the battery as do
the sealed fuse holders ( that also hold a spare
fuse ). The switching lead plugs in between the tail
light connector. This is a very simple kit to
install. Included
are male MT-090 connectors so you can add to your
devices so they can be plugged into the female
MT-090 connectors on the 2CS outputs.
|
|
Tail Light Break Out
Cable
The tail light break out provides a
lead for the following; Tail Light, Brake Light and
a Ground connection. This allows you to add extra
brake or tail lights and it also allows you to
access a switched source for a fuse box or 2CS kit.
A modified version is included with the 2CS kit.
|

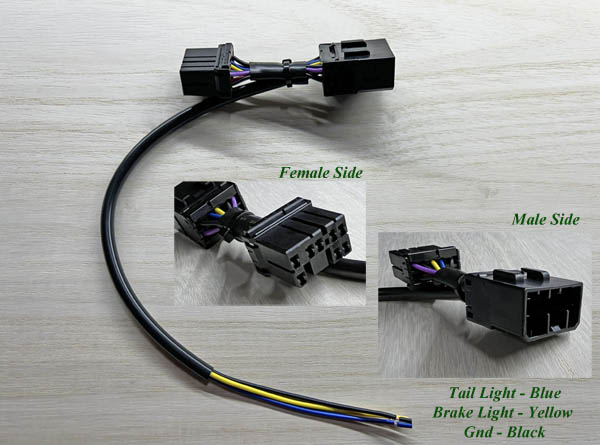

Figure 3: Tail Light Break Out
Cable
NOTE:
The 2CS version of this cable only has the blue and
black cables as the yellow is not necessary
|
|
FXST TC96 Tail
Light Splitter $24.95
|
|
|
Tail
Light Connectors
OEM Amphenol connectors for the tail
light on TC96 and other Harley Davidson's.
Connectors include terminals.
Amphenol Multilock .070" 8 Pin Male & Female with
Pins. |

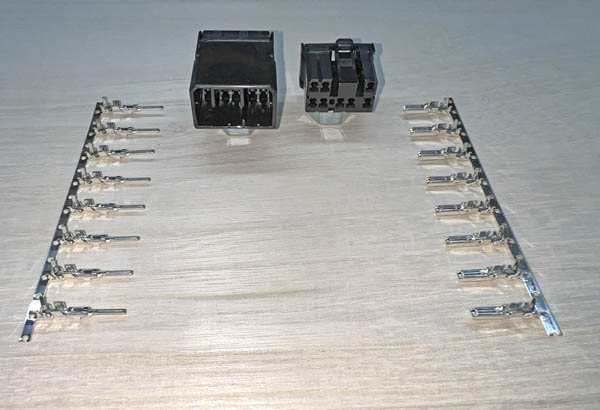

Figure 4: Tail Light Connector
Set
|
|
FXST TC96 Tail
Light Connector - Set $9.95
|
|
|
Related Pictures |

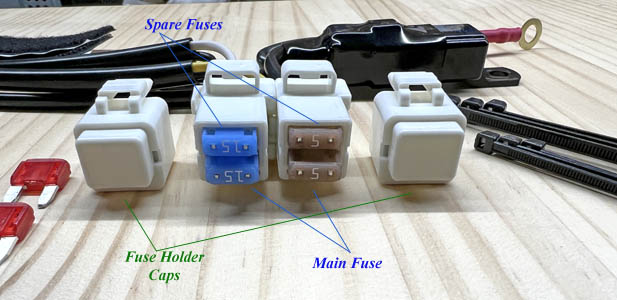

Figure 5: Fuse Holder with
