CRF1000/1100 ‘Other Products’ - quick links below
CRF1000L Rear Lighting Adapters (fit 1100 too)
These bikes have a few connectors for rear lighting. One 3P sealed connector plugs directly into the tail light housing for the brake and tail lights. The other 2P connectors (3) are used for signals and licence plate light. Here are the new adapters that work on this model.
|
CRF1000L Brake/Tail Adapter
- Brake/Tail Adapter Install and Help
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
These adapters allow you to install aux brakelights, and aux tail lights without splicing into or changing the stock wiring and connectors.
|
|
|
|
 |
|
|
|
Version 1 - all wires are take-offs from stock wires. Red wire is brake, blue wire is tail, and black is ground.
|
|
|
|
CRF1000L Brake/Tail Adapter V1 $24.95
|
|
|
|
Version 2 - brakelight wire has input (purple) and output (red) wires for BackOff type modulators. Tail light wire (blue) and ground (black) are take-offs from stock wires.
|
|
|
|
CRF1000L Brake/Tail Adapter V2 $26.95
|
|
|
|

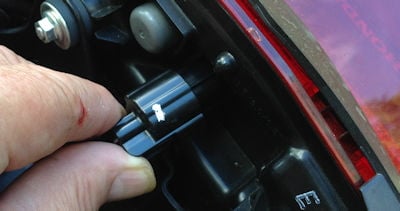

Brake/Tail connector, far rear under passenger seat - connector plugs directly into light housing
|
|
|
 |
|
|
|

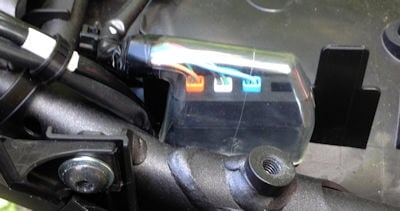

Signal connectors, rear right under passenger seat - orange and blue are signals, white is licence light
|
|
|
 |
|
|
|
|
|
|
|
CRF1000L Turn Signal Adapters
- Signal Adapter Install and Help
|
|
|
|
|
|
|
Available with blue or orange connector

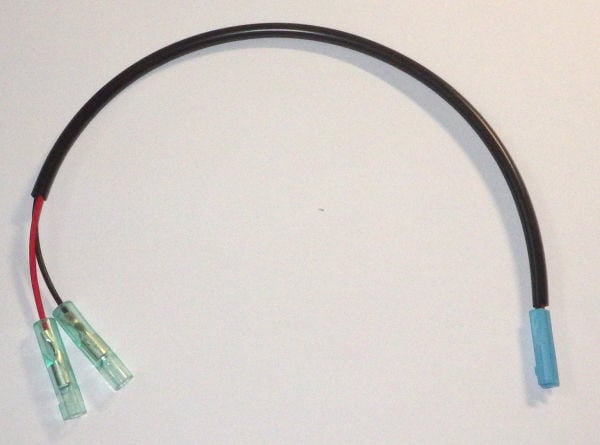

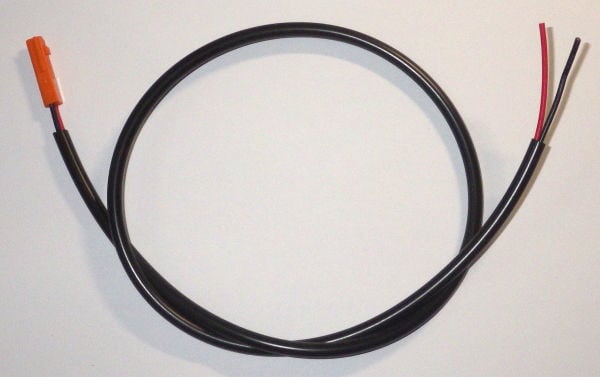

Available in two types: short 12 inches (30 cm) with female 4mm bullets, and 24 inches (61 cm) long with bare wires.
Click below pics to buy.
|
|
|
|
 |
|
|
|
CRF1000L Signal Adapter Long $12.95
|
|
|
|
 |
|
|
CRF1000L Signal Adapter Short $12.95
|
|
|
|
|

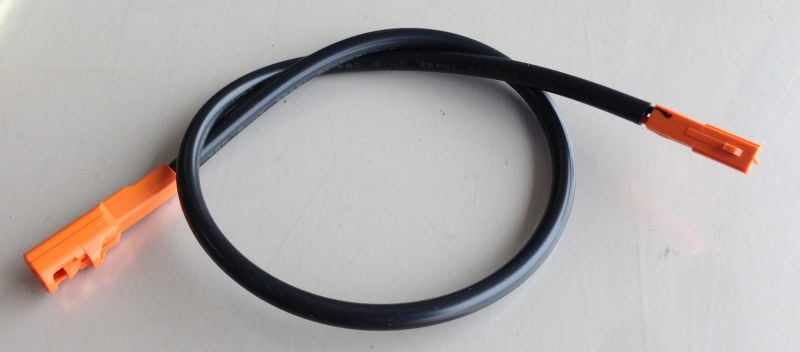

Signal light wire extensions (fit 1100 too) - with skyblue or orange connectors.
|
|
|
|
|
|
 |
|
|
CRF1000L Signal Wires Extension 16”(40cm) $12.95
|
|
|

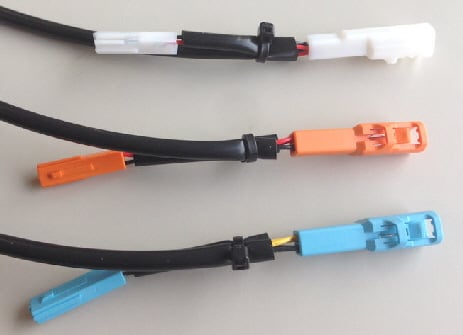

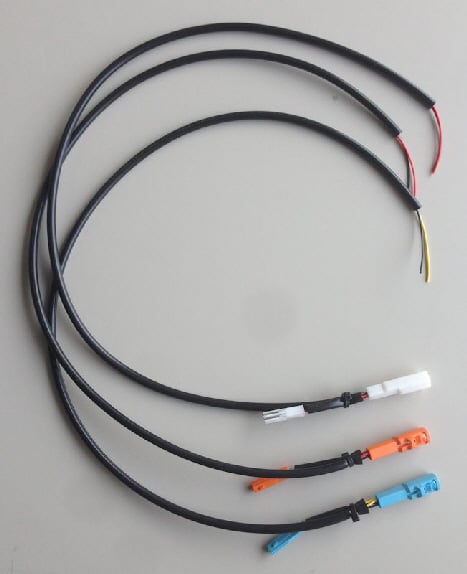

Turn Signal Splitters (fit 1100 too) - with blue, orange, or white connectors. These units plug inline on the stock connectors give you two wire takeoffs for aux signals and other rear lighting devices requiring turn signal functions. White unit matches licence light connectors.
|
|
|
|
|
|
|
 |
|
|
CRF1000L Turn Signal Splitter 24”(61cm) $14.95/ea
|
|
|
|
Turn Signal Connectors (fit 1100 too)
|
2 Position HC050 Connector
Used for turn signal connectors on some bikes.
Fits wires from .3mm - .5mm (24 - 20 AWG).
|
|
|
|
|
Blue and Orange and White Available!
|
|
|
2P050-HC-Blue-Male $1.79 ea
|
|
|
2P050-HC-Orange-Male $1.79 ea
|
|
|
2P050-HC-White-Male $1.79 ea
|
|
|
|
|
|
|
2P050-HC-Blue-Female $1.79 ea
|
|
|
2P050-HC-Orange-Female $1.79 ea
|
|
|
2P050-HC-White-Female $1.79 ea
|
|
|
|
|
HE050 Male Terminal
Fits wires from .75mm - 1.25mm (18 - 16 AWG).
Click below to buy:
|
|
|
M050-HE $0.10 ea
|
|
|
|
|
|
|
HE050 Female Terminal
Fits wires from .75mm - 1.25mm (18 - 16 AWG).
Click below to buy:
|
|
|
|
F050-HE $0.10 ea
|
|
|
|
|
|

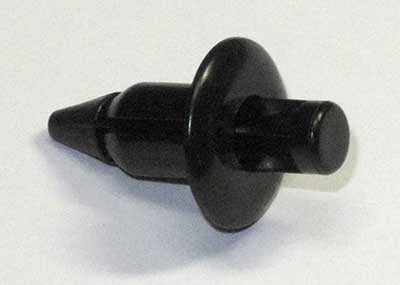

 Plastic Panel Mount Push Rivets (fit 1100 too)
|
CF-1 - $4.95 (pack of 10)
|

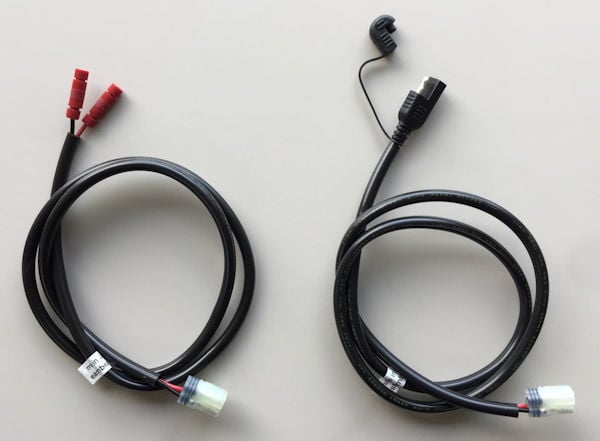

Front Power Leads (NOT for 1100)
Plug into your bike’s front 4P connector to power and ground your accessories, quick and cheap. Also fits Front 4P Splitter.
With your choice of Posi-Locks or SAE connector with cap
|
CRF1000 Front Power Leads $24.95 ea
|
|

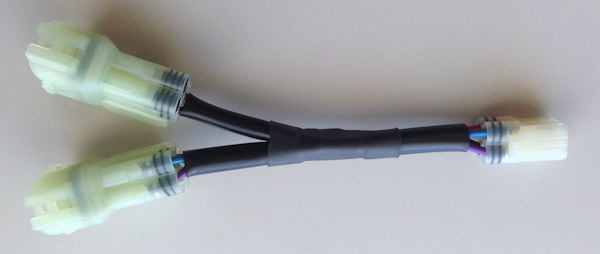

Front 4P Power Splitter (does NOT fit 1100)
Power Splitter for Front Fairing Power Connections
Duplicate of Honda’s splitter but better, tougher, and cheaper. See below for accessory connections. One output connector is fully wired (4P), the other has power and ground only (2P). You can use either output connector to power and ground GPS, Heated Grips, Power Socket, and more. All wires are 18 AWG.
|
CRF1000 Front Power Splitter $34.95 ea
|
|
|
CRF1000 FPS Accessory Kit $4.95 ea
|
|

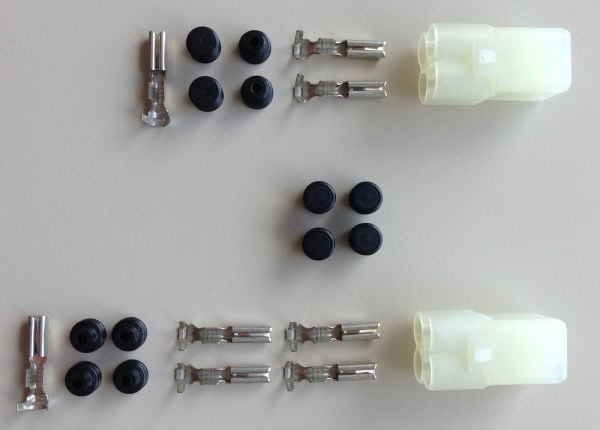

The accessory kit shown below has enough to fully wire both connectors, plugs are included for an unused connector. 2 Extra terminals are included. Further down this page you can buy all these components separately.
|
|
|
Front
2P Power Splitter (
CRF1100 )
Splitter for Front Fairing
Accessory Power Connection
Honda rates the front
accessory power socket on the CRF1100 at 24w or
2A. It is fused by a 3A fuse that is
tucked away to the left of the fuse box under a
rubber sheath. The accessory socket connector on
the 1100 is an 060 type connected compared to
the 090 on the 1000. For higher current needs
it's a much better solution to use a 4CS or
PC-8R and connect all your accessories to that.
Both are plug and play so no modifications to
your bikes wiring.
|
CRF1100 Front Power Splitter $24.95 ea
|
|
|
|
|

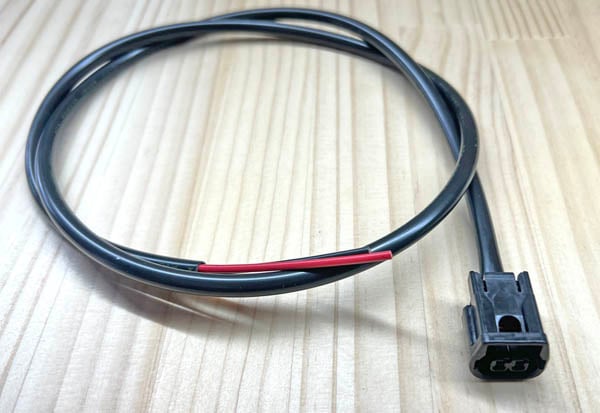

Front
2P Power Breakout Lead (
CRF1100 )
Splitter for Front Fairing
Accessory Power Connection
Honda rates the front
accessory power socket on the CRF1100 at 24w or
2A. It is fused by a 3A fuse that is
tucked away to the left of the fuse box under a
rubber sheath. The accessory socket breakout
cable can be used to connect low power devices
such as USB chargers, some navigation systems or
radar detectors.
|
CRF1100 Front Power Breakout $14.95 ea
|
|
|
Rear Power Splitter and Leads: (NOT for 1100)
|
Rear Accessory Splitter - for bikes with an alarm system (or anything else plugged into this connector) using the 6P connector under the passenger seat. This splitter allows normal hookup while providing hookup for our PC-8 or 3CS Kits. Connectors only, and parts available below on this page.
|
|
|
CRF1000 6P Rear Accessory Splitter $39.95
|
|
|
|
|

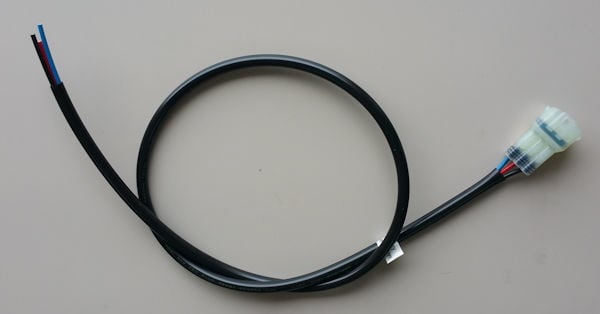

Rear Accessory Leads - plugs into the rear aux power connector with three 36” (92cm) 18 AWG wires you can connect your GPS etc to. Fused on the bike to 10A max. All high temp wires and sheathing, full time power, switched power, and ground wires. Blue wire is switched power, red wire is always on power, and black wire is ground.
|
|
|
CRF1000 6P Rear Accessory Leads $14.95
|
|
|
|

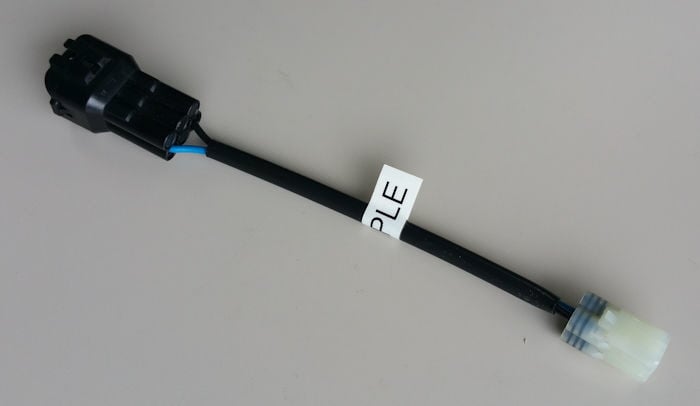

4 to 6P Switching Adapter
|
This adapter plugs into our old PC-8 Kit’s 4P connector and allows you to connect to the 6P like our new PC-8 Kits.
|
|
|
|
4 to 6P Switching Adapter $12.95
|
|
|
|
|

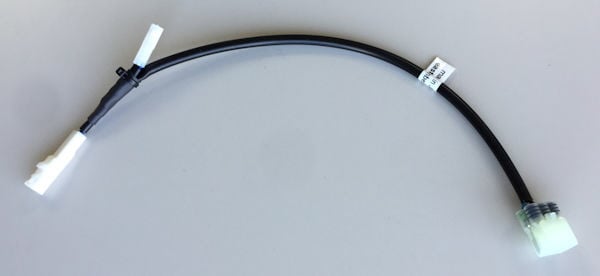

This adapter plugs into our PC-8 Kit’s 6P connector and allows you to connect to the licence light connector like our new 1100 Kits.
|
|
|
|
6P to Licence Light Connector Switching Adapter $12.95
|
|
|
|
Electrical Connectors (fit 1100 too)

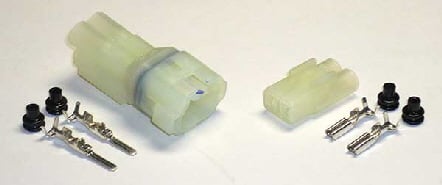

Sumitomo Sealed HM090
|
|
|
2 Position .090 Waterproof Connector.
Fits wires from .5mm - 1.25mm (22 - 16 AWG).
Tough plastic housing with inner seal, plus seals on each wire.
Click below to buy:
|
|
|
2P090WP-HM Set $4.29 ea
|
|
|
|
|

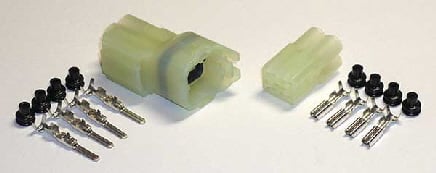

4 Position .090 Waterproof Connector.
Fits wires from .5mm - 1.25mm (22 - 16 AWG).
Tough plastic housing with inner seal, plus seals on each wire.
Click below to buy:
|
|
|
|
4P090WP-HM Set $6.09 ea
|
|
|
|
|
6 Position .090 Waterproof Connector.
Fits wires from .5mm - 1.25mm (22 - 16 AWG).
Tough plastic housing with inner seal, plus seals on each wire.
Click below to buy:
|
|
|
|
6P090WP-HM Set $7.49 ea
|
|
|
|
|
Sealed HM and MT Pins and Seals
Click below to buy:
|
|
|
|
|
|
|
HM/MT/HW Male Terminal $0.14/EA
|
|
|
|
HM/MT/HW Female Terminal $0.14/EA
|
|
|
|
HM/MT Seal $0.09/EA
|
|
|
|
HM/MT Plug $0.12/EA
|
|
|
|
|

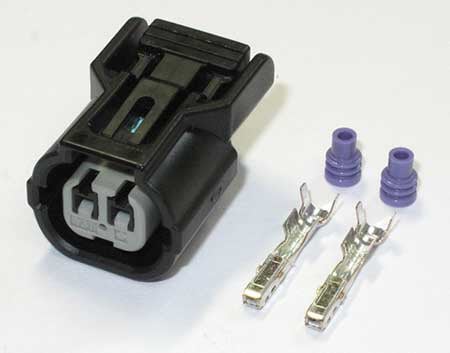

Fog Light Switch Connector - mates with the connector on the stock Honda foglight switch
|
2 Position Waterproof Female Connector (Center Rib).
Fits wires from .5mm - 1.25mm (22 - 16 AWG).
Tough plastic housing with inner seal, plus seals on each wire.
Click below to buy:
|
|
|
2 Position 2P040WP-HX-CR-F $2.79 ea
|
|
|
|
Also found on the CRF1000 - the 4P HX040 Sealed. Look here for this connector.
We stock most if not all of the connectors found on the bike, please browse our connectors pages.
