Gen 3 From 2022 - |
ABS Control Switch
This unit allows you to switch off ABS for off-road riding.
A switch on the handle bar allows you to switch off ABS, on
the fly. When OFF, a
flashing LED in the switch alerts you to the status i.e. ABS
is OFF. When riding on dirt roads or off-road, being able to
lock the wheels
can improve motorcycle control ( especially on steep
descents ). However, it is recommended only for competent
riders and not new riders.
Purchaser/installer accepts all responsibility for
use/effects.

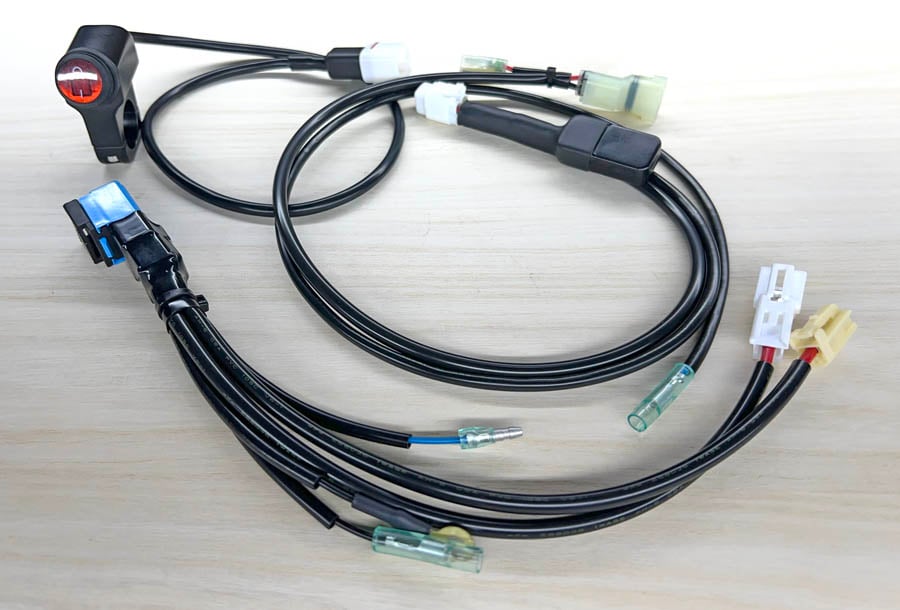

Figure 1: KLR650 2022 - ABS Control Switch
This kit allows you to switch off the ABS unit for
off-road riding. The switch has a LED that we flash to
notify you that the ABS unit is turned off. We use the
switch to control a relay. The relay is default, Normally
Closed (NC ) so in the event of a relay failure, the ABS
unit will work as normal. Because this kit is plug and play,
you can simply disconnect the kits from the ABS connection,
if you ever decide to sell the bike or just don't want to
use the functionality.functionality..
|
kLR650 2022 ABS Control Switch - $89.95
|
|
Installation Note: The switch is designed to mount on
22mm bars. The unit plugs inline with the ABS connection
under the seat area. The switched
input is take from one of the spotlight connectors (right
side cowl - white 2 pin connector ). A splitter is supplied,
so works even if the connection you planned
to use, is already in us. Some bikes will require a relay be
installed ( right side cowl ) and a 15A accessory fuse (
under the seat ).
Accessory Power Relay
Kit
Includes a Panasonic relay &
two LittleFuse MiniATM 15A fuses to enable power to your fog
light & USB port.
Please make sure your bike did not come from the factory
with the relay and fuse installed ( some bikes come with the
relay pre installed ).
Parts are all original, ie not copies as sold on many larger
e-commerce sites.
Figure 2: KLR650 Gen 3
Relay Kit
|
KLR650 2022- Relay Kit $9.95
|
|
|
|
Tail Light Breakout
Provides break out cables
for the brake, tail light and a ground. Can be used
to power extra tail lights or top box lights or as a
source of switched power.
High quality cable
with Yazaki wire and Japanese connectors.
|

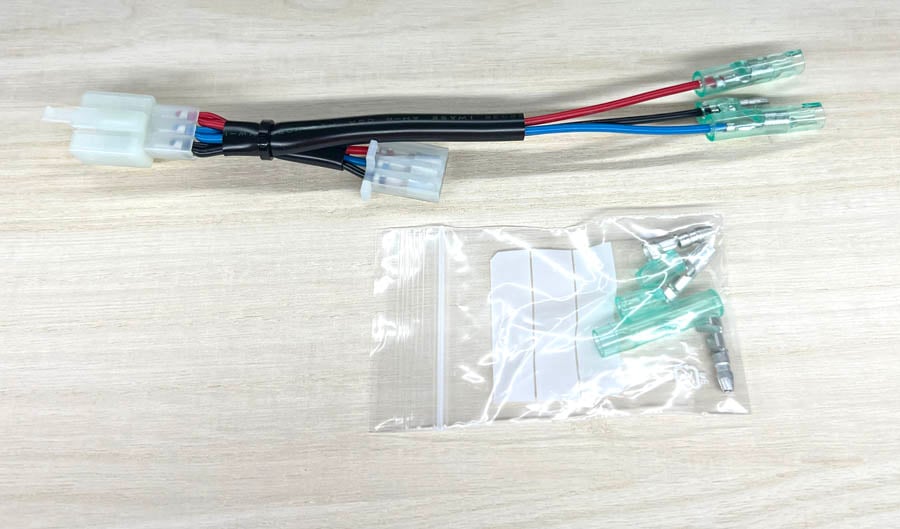

Figure 3:
KLR650 Gen 3 Tail Light Break Out Cable
|
KLR650 Tail Light Break Out Cable
$19.85
|
|
|
|
Number Plate
Light Break Out |
Provides a source of switched ( ignition )
power for relays or fuse boxes. Located under the
pillion seat, so easy to access. Recommended to keep
current draw under 2 amps
on this connection. Not meant to power anything
bigger than a USB port or relay coil. |

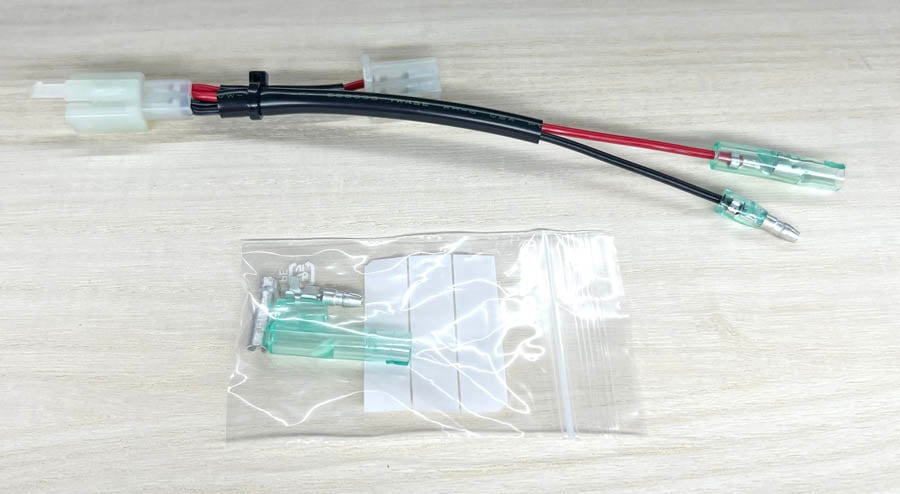

Figure 3:
KLR650 Gen 3 Number Plate Break Out Cable
|
|
KLR650 Number Plate Break Out Cable $12.85
|
|
|
|
Front Accessory
Light Splitter |
|
|
The KLR650 2022- has MT-090 connectors on either
side of the radiator. This splitter can be used to
provide 2 outputs, from either on of the OEM
connections. Both outputs are switched power.
|
|
KLR650 Front Accessory Port
Splitters $19.95
|
|
|
|
|
|
|
|
|
|
|
Lighting Kits & Light Wiring Kits Coming Shortly |
|
|
|
|
|
