3 Circuit Solution HD for New Super Tenere
The 3 Circuit Solution gives you 3 fused outputs in two versions, one with all circuits controlled by a relay, and the other version with one circuit always hot and two switched. Easy to install, and comes with mating connectors for your circuits. This custom Kit uses the Auxiliary Lights connector near the battery for an easy plug in install for relay switching. Comes with fuses and cable ties, plus mating connectors.
This Kit can be used for higher current needs. Each circuit of the HD unit is 15A capable. Total maximum current draw max for the HD Kits is 30A. This Kit uses unsealed .250”�� connectors that are easy to work with if crimping or soldering.
If you already have aux lights using the stock connector, you will need to also buy our Aux Light Splitter.
Read more about the 3 Circuit Solution HD here.
ABOUT THE CHOICE OF CONNECTION - Now with a Choice of direct Battery Connection, or a Powerlink Connection, both are shown below. The Powerlink version comes with a 2P heavy duty sealed male connector to plug into the Powerlink Battery Leads. This option allows you to use the Powerlink jumpstart system or add another high power circuit to the bike for high power horns etc.
for Powerlink System info and accessories, see our Powerlink Page.

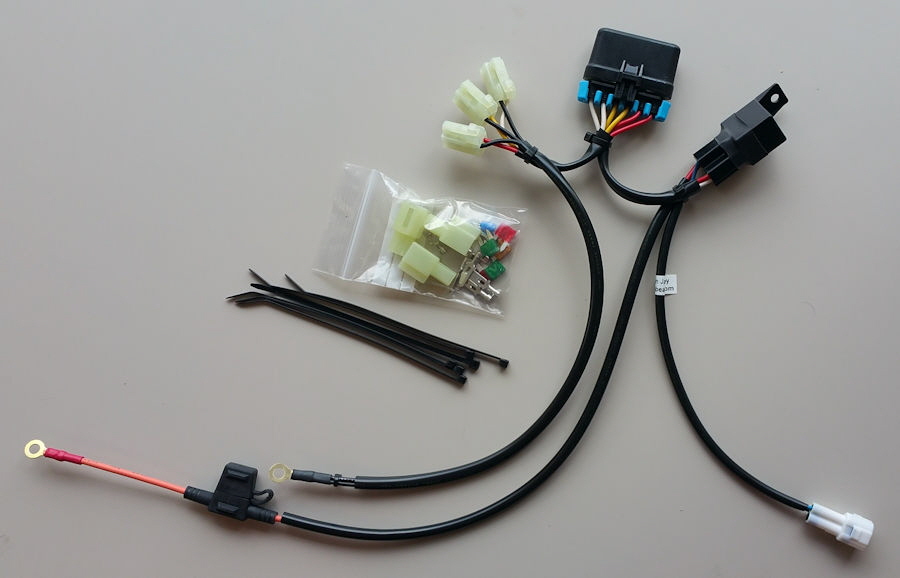

Battery Connect Version

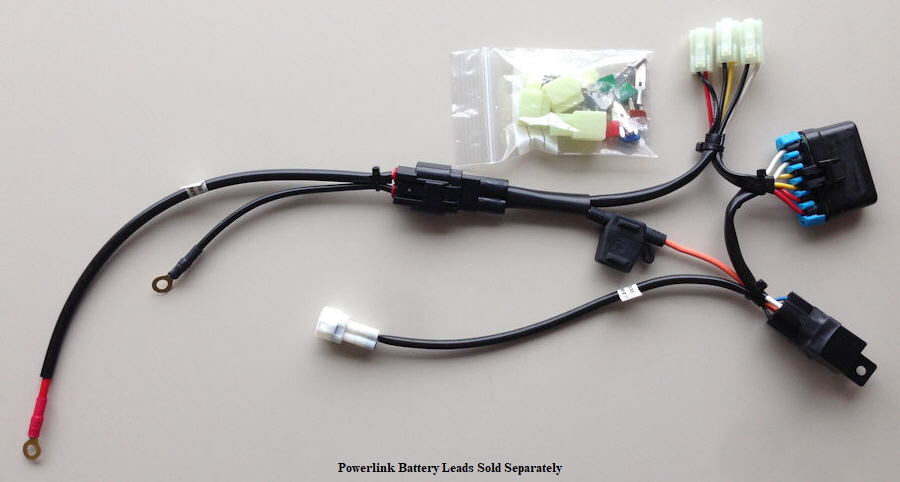

Powerlink Connect Version (Powerlink Battery Leads Sold Separately)
|
3CS-HD for S10 All Fuses Switched $64.95
|
|
|
3CS-HD for S10 One Fuse Unswitched $68.95
|
|
|
Powerlink Battery Leads for S10 $10.95
|
|

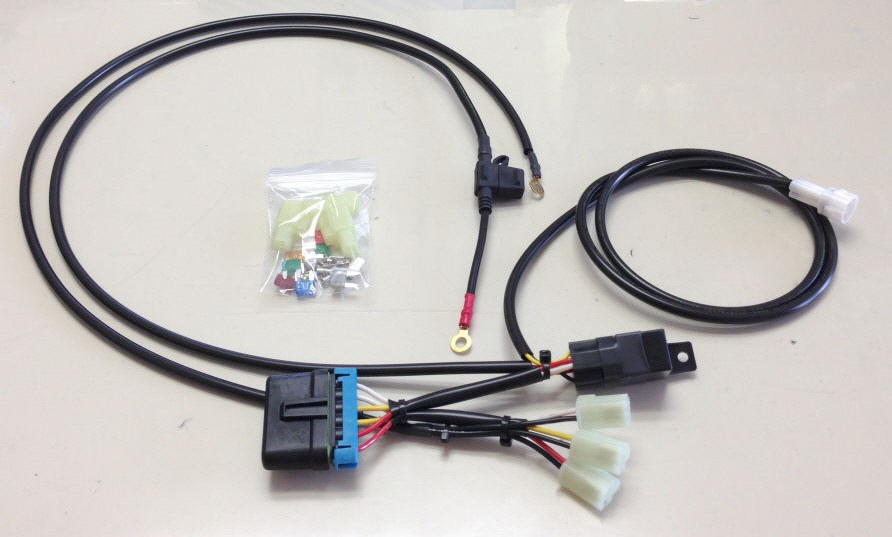

The 3 Circuit Solution HD Long (two versions available, all fuses switched, and 1 fuse unswitched)
Has 36 inch battery leads and is for mounting under the seat while still easy to install using the Auxiliary Lights connector near the battery for an easy plug in install for relay switching. Comes with fuses and cable ties, plus mating connectors.
|
3CS-HD LONG for New Super Tenere All Fuses Switched $74.95
|
|
|
3CS-HD LONG for New Super Tenere One Fuse Unswitched $74.95
|
|
Extra connectors for the 3CS-HD
|

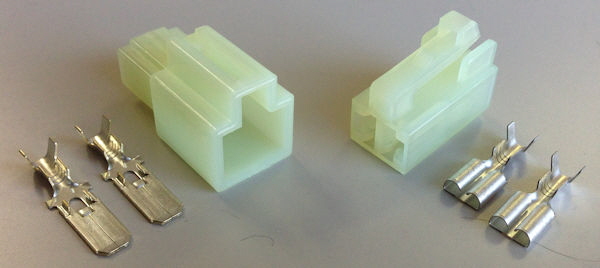

2P250 CNA Tang-Less Set
Tough plastic housings with tin plated brass 2 sqmm terminal set. Click below to buy.
|
|
|
2P250-CNA-TL Set $2.83
|
|
|
|
|
|
|
2P250-CNA-TL Female $1.79
|
|
|
|
Extra terminals for the 3CS-HD connectors
|
.250 Tang-Less Female Receptacles $0.12 Each
On the right all three sizes are shown. Choose your size according to the wire size to be used. Terminal ‘size’ is the maximum size wire it will take.
|
|
|
3 mm2 (12 AWG)
|
|
|
2 mm2 (14 AWG)
|
|
|
.4 mm2 (20 AWG)
|
|
|
|
|
|
|
.250 Tang-Less Male Tabs $0.16 Each
On the right all three sizes are shown. Choose your size according to the wire size to be used. Terminal ‘size’ is the maximum size wire it will take.
|
|
|
|
|
3 mm2 (12 AWG)
|
|
|
2 mm2 (14 AWG)
|
|
|
|
.4 mm2 (20 AWG)
|
|
|
|
|
|
|
3CS HD Splitters - NOTE: all CS Splitters are now a more compact 20 cm (8 in)
These splitters allow you to use an output for 2 circuits which will share the same fuse.
Made using high temp 18 AWG wire and high temp sheathing. Each side of the splitter is good up to 10A, total of 15A for the two sides.
Below are shown all the possible choices you can get, you can choose both outputs.
|
|
|
|
|
|
|
|
|
A set of 1824 Posi-Locks and an SAE plug with cap shown here.
|
|
|
|
One T-Connector for Powerlet type sockets, and one set of insulated push on 1/4” females - use to connect one 3CS output to two different sockets.
|
|
|
|
Two 3CS-HD outputs - use to split one 3CS output to two.
|
|
|
|
3CS HD Splitter $19.95
|
|
|
|
3CS HD Leads
|
3CS-HD Extension Leads
These leads are an extension for the 3CS-HD outputs. Available in 3 lengths and made from the highest quality components. Made with high temp 16 AWG wire and high temp sheathing.
|
|
|
3CS-HD Extension Leads 80 cm (32”) $12.95
|
|
|
3CS-HD Extension Leads 120 cm (48”) $14.95
|
|
|
3CS-HD Extension Leads 160 cm (64”) $16.95
|
|
|
|
3CS-HD Leads with SAE Plug
These leads are a complete solution to add an SAE plug to your 3CS-HD. Available in 3 lengths and made from the highest quality components.
|
|
|
2 Prong SAE Plug for battery chargers, etc., WITH 16 AWG wire. (NOW WITH SAE CAP)
|
|
|
3CS-HD Leads to SAE w/cap 80 cm (32”) $12.95
|
|
|
3CS-HD Leads to SAE w/cap 120 cm (48”) $14.95
|
|
|
3CS-HD Leads to SAE w/cap 160 cm (64”) $16.95
|
|
|
|
|
NEW - Aux Lights Splitter
This splitter is for those that have something plugged into the stock aux light connector that these Kits use for relay switching. With this splitter you can plug in and use whatever is now plugged in, and also plug in the switching lead on our PC-8 or 3CS Kits on this page.
|
Aux Light Splitter for Super Ten $24.95
|
|
Power Leads for Aux Light Connector (DIY aux lights etc)
You can use this adapter to power GPS, Aux Lights, and any other accessory using low or medium current draw. Wires, connectors, and sheathing are high temp, highest quality, Japan made and assembled by Eastern Beaver.
Three 16 AWG wires: ground, switched power and always hot power
|
Power Leads for Tenere Aux Light Connector 91cm (36”) $16.95
|
|
|
