LED Lights For
The Super Tenere.
These kits are generally plug and play. The
power source can be the Aux Power connector, or a PC-8R or CS
Kit.
Please note the fuse box options are available separately.
There are some options that can be added or omitted as follows;
DL-MOD0-1 - if a fuse box is the power source, the small
box will delay the fuse box powering up, so that all battery
power is available to start the bike. Delay is 15 seconds.
( can work with any fuse box as long as current is under 0.2A (
most relays ) ).
EB-DimR - this is an on/off switch with dimming from 10%
though to 100%. It also has a high beam input which switches the
lights to full power when the high beam is ON.
( requires the High Beam splitter cable ).
Aux Light Splitter - splits the AUX power output into 2
so you can use one output to switch on the fuse box and one for
another purpose.
Head Light Splitter - provides a signal for
dimmers that have a high beam input. Causes lights to switch to
full brightness.

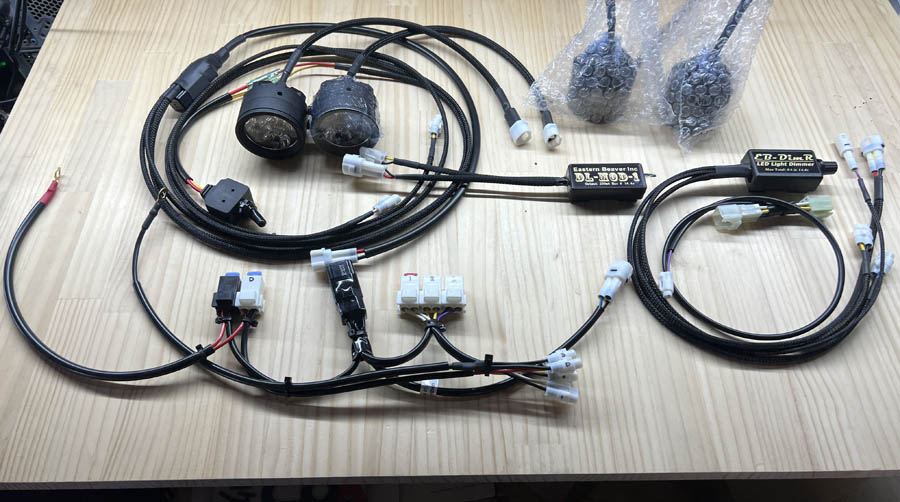

FIG 1:
The kit shown in the above image is a dual set of EB-60's.
The lower set has a dimmer to control the brightness and the
upper set is on a separate switch.
The DL-MOD-1 is connected between the Aux power outlet and
the 4CS fuse box to delay power to accessories for easier
starting. The 4CS provides power to both sets of
lights and any other accessories the customer decides to
connect. The Head Light Splitter provides an input to the
dimmer to switch the lower lights to 100%
when the High Beam/Pass Switch are On.
|
|
EB-60A Dimmer Kit for Super Ten $335.95
|
Includes Head Light Splitter, Aux Power Splitter,
Dimmer wiring kit &
LED Lights ( 1 set EB-60A ) |
|

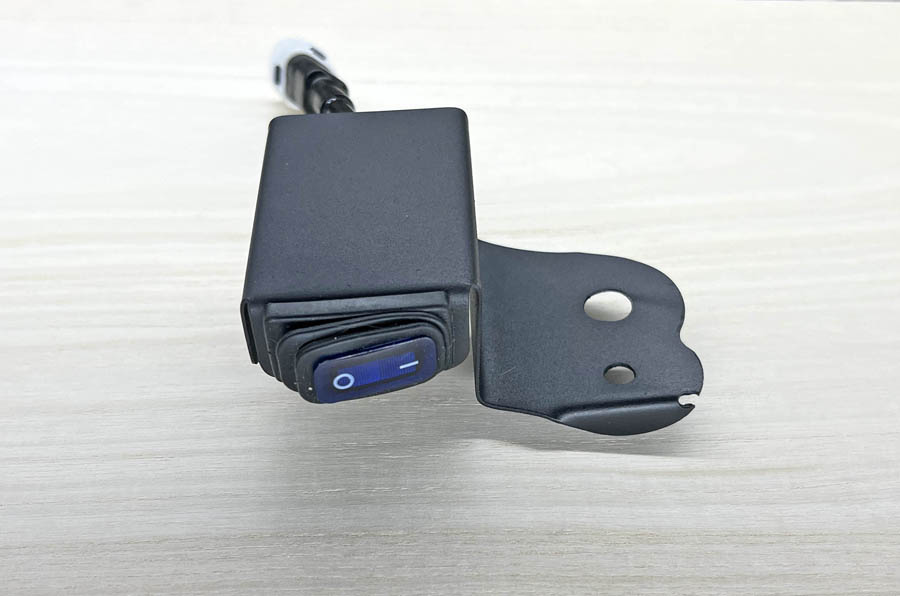

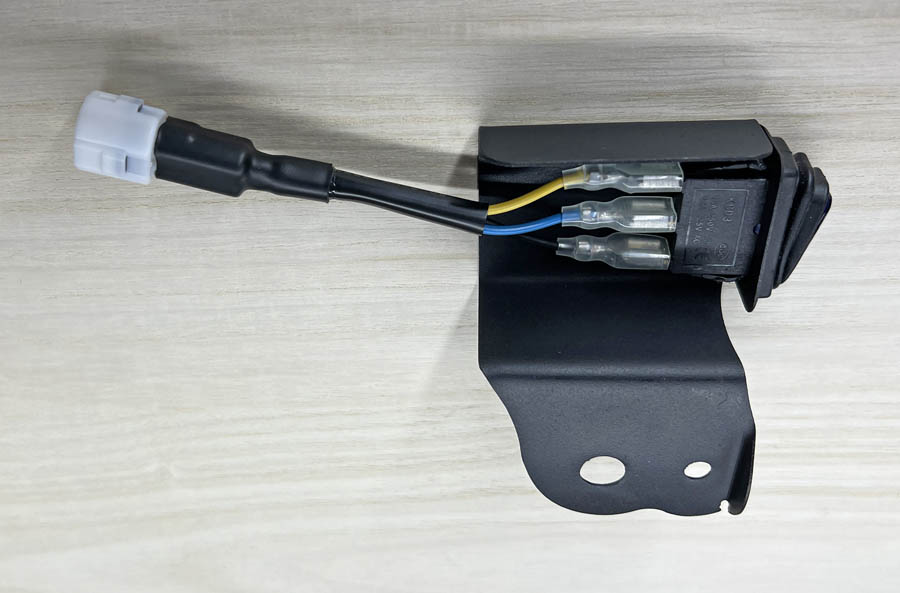

EB-60A Switch Kit for Super Ten $290.95
|
Includes Aux Power Splitter, waterproof switch,
wiring kit &
LED Lights ( 1 set EB-60A ) |
Option:
( Included where stated above ) |
|
4CS Kit for Super Ten $64.95
|
Uses the Aux Power connector for switching signal.
You may need an
Aux Splitter if connection is already in
use. |
|
PC-8R 40A Kit for Super Ten $114.95
|
Uses the Aux Power connector for switching signal.
You may need an
Aux Splitter if connection is already in
use. |
|
DL-Mod-1 for Super Ten $44.95
|
|
|
Head Light Splitter for Super Ten $16.95
|
|
|
Aux Power Splitter for Super Ten $24.95
|
|
|
EB-DimR LED Dimmer $64.95
|
|

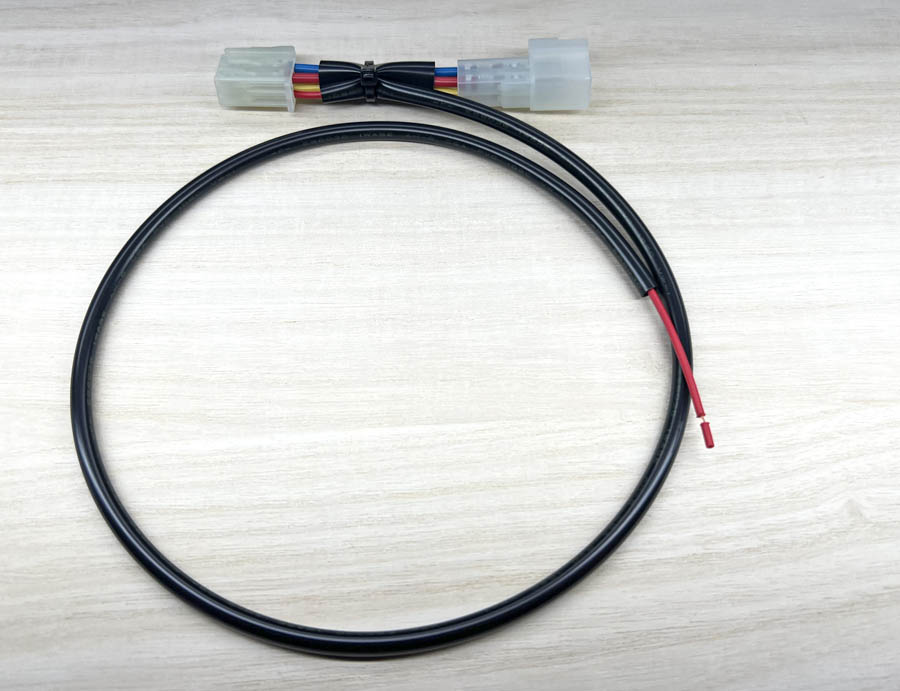

Head
Light Splitter
Provides a high beam signal for dimmers such as the EB-DimR.
The signal is high when the high beam switch is On, or when the
'flash to pass' switch is activated.
We recommend to keep current draw to under 200mA so as not to
effect the headlight or headlight switch. The EB-DimR high beam
input draws only 1.4mA.

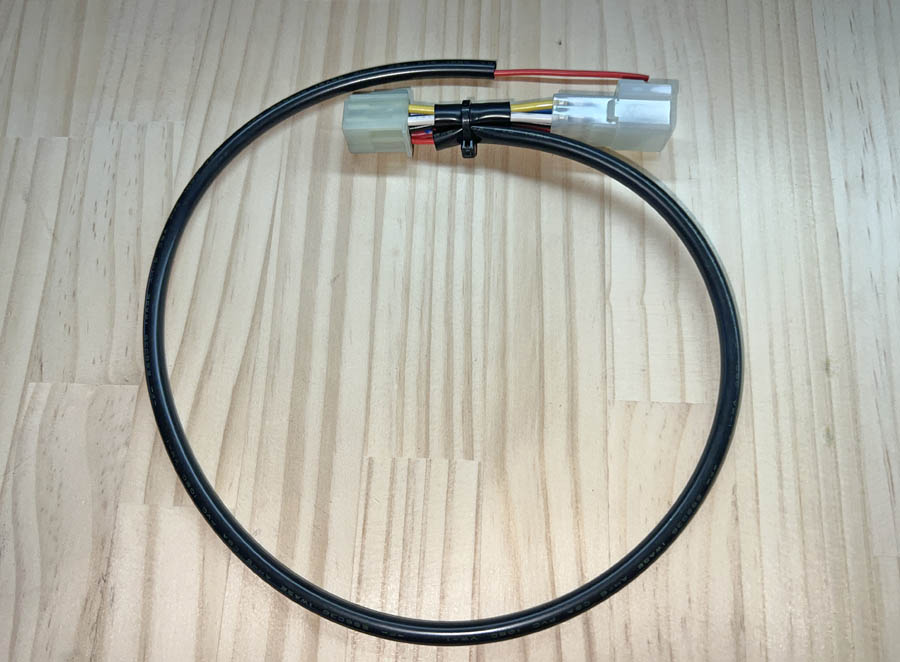

Fig 2: Super Tenere Head Light
Splitter
|
Head Light Splitter for Super Ten $18.95
|
|
|
