This Kit is fully plug and play and is designed for easy install and a perfect fit. This Kit has a switching connector that plugs in to the aux power connector at the rear of the seat area.

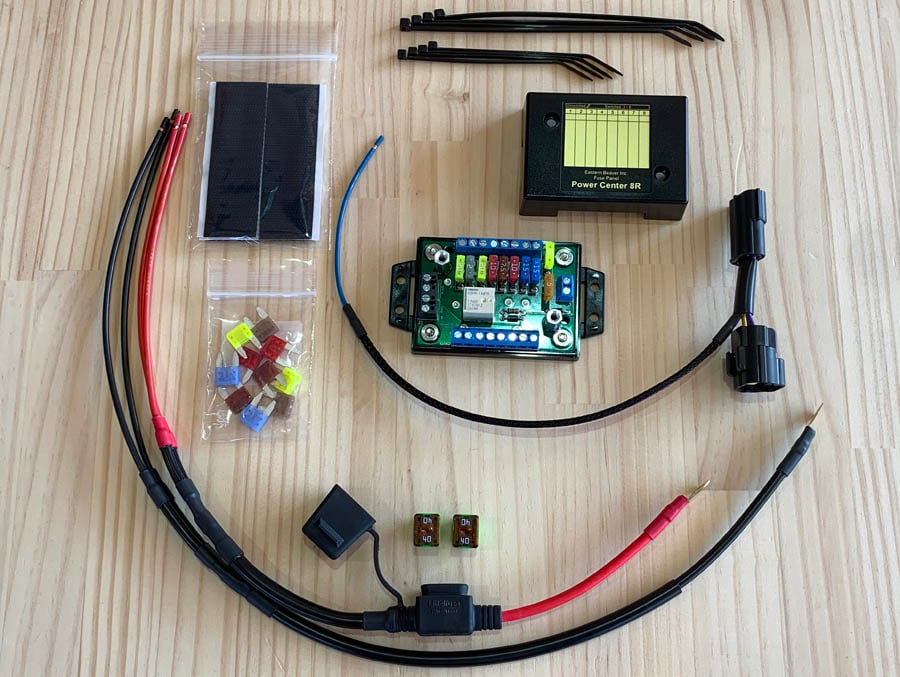

The PC-8R is a superb fuse panel, full of all the features you need and more! Easy to install, well protected, and with 8 mini fuses, one on each output circuit. Includes 8 output grounds too. The Kit is made from highest quality high temp wire and sheathing. Just strip your circuit wires and insert into the PC-8R outputs and tighten the screws. Both power and ground terminal blocks are built in.

This Kit in Fig 1: is 40A rated. ( note between 50% and 65% of the bikes stator power is used to power the bike itself ), so this
40A kit is good on bike with stator up to 900w.


The difference between the 30A and 40A kits is only the battery connection.

The difference between the 30A and 40A kits is only the battery connection

The PC-8 version has an external relay. Takes up a little more space, but is rated at 10A more and the relay is field replaceable.


1 Switched output

2 Switched Outputs

3 Switched outputs

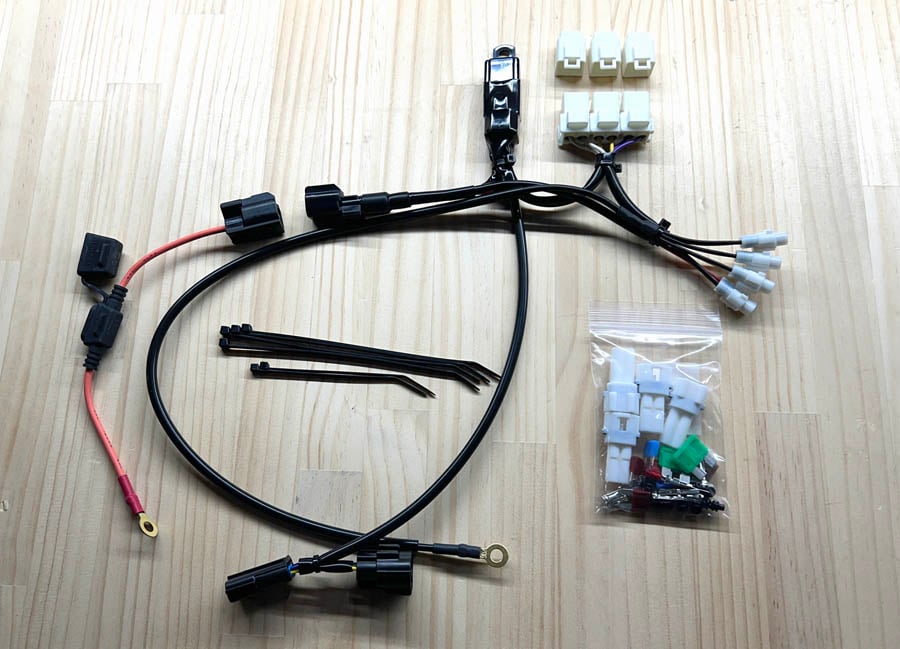

1 Un-switched and 3 Switched outputs

Fits more models including;
Tiger 1200 ( 17- 23 )
Tiger 900
Tiger 800

660 Sports ( 21-21 )

Fits more models including;
Tiger 1200 ( 17- 23 )
Tiger 900
Tiger 800
660 Sports ( 21-21 )
