| Riding Lights | |||||
|
EB-60A - 60mm ( 4,500lm/set ) EB-70A - 70mm ( 9,000lm/set ) EB-90D - 90mm ( 12,020lm/set ) |
EB-60A - Set with wiring kit EB-70A - Set with wiring kit EB-90D - Set with wiring kit |
||||
| EB-110D LED Riding Lights | |||||
| Large 110mm LED riding lights with 7,450lm per light (
14,900lm/set ). These lights are a combination flood/spot with 20% spot
and 80% flood, making for super illuminated night riding. Each light comes with 12 months warranty. All connections utilize Japanese connectors. Lights comes with mounting hardware, matching male connectors, but not wiring kit, unless stated. Lights come with brackets and bar clamps that fit 22mm - 25.4mm ( 1 inch ) bars. The connector is a 3 pin MT 090 male and the wire length is 15cm ( 5.9" ) With wiring kits or without ( to replace existing lights ). If replacing older lights, send us a picture of the connection. We may be able to custom fit connectors to match your existing light connection making for plug and play replacement. Please note these lights use a digital dimmer and are a 3 wire connection. We also have a version that are 2 wire version ( EB-110A ), for use with a PWM dimmers.. |
|||||
| Diameter: | 110mm ( 4.3" ) | Lumens/Light/Set | 7,450lm/14,900lm | ||
| Length: | 80mm | CCT | 6,500K | ||
| Height With Bracket | 138mm | LED | SST-40 x 7 | ||
| Waterproof | IP67 | Color | White | ||
| Lens Cap Included: | Yellow | Voltage | 12v-16v DC | ||
| Bar Mount Included: | 22mm - 25.4mm | Power: | 100w ( Max ) 87w ( Typical ) | ||
| Warranty | 12 months | Operating Temperature | -40c to +80c | ||
|
EB-110D - Set with wiring kit |
|||||
|
A quality wiring kit includes with digital control box
and handlebar dimmer/switch. Press the Dimmer/Switch once to power up
the lights. Press for 3s to set to strobe mode and toggle between 3
strobe modes. The dimmer adjust provides for 25 level steps ranging from 0% to
100%. A memory function is included. so your dimmer ( DRL ) setting is
remembered the next time you ride the bike. There are also three inputs,
( Accessory, Horn, High Beam ), to allow control of the lights from
existing signals from your bike. The Horn input casues the lights to
flash when the horn is pressed. The High Beam input causes the lights to
go to 100% power if the high beam input it high. The Accessory input
should be connected to a source of switched power, as this will disable
the lights if not connected to switched power. |
|||||
 |
|||||

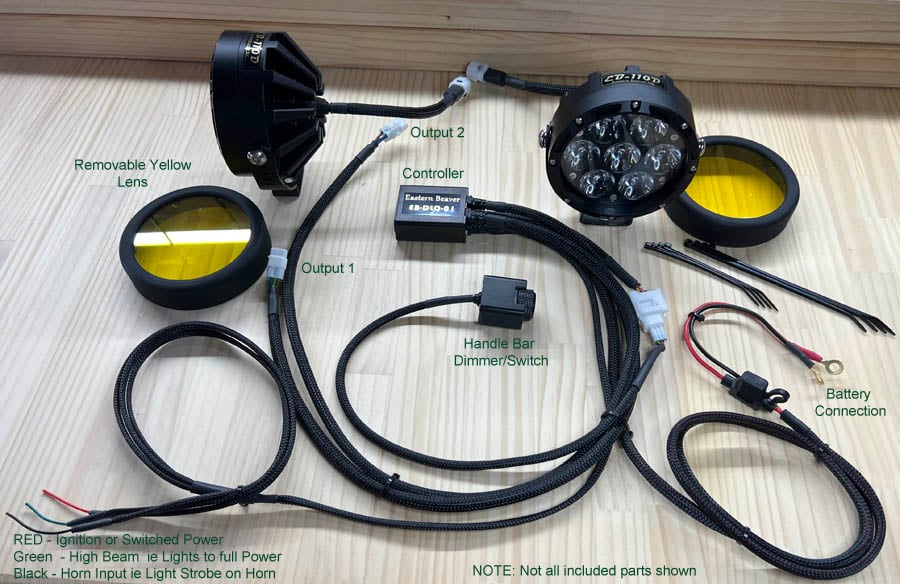

Set EB-110D with wiring kit
|
|||||
