Aux
Lights Splitter
This splitter is for those that have something plugged into
the stock aux light connector that these Kits use for relay
switching. With this splitter you can plug in and use whatever
is now plugged in, and also plug in the switching lead on our
PC-8 or 3CS Kits on this page. Or you can power one or two of
the Power Leads below.
Aux Light Splitter $24.95
|
|
This splitter and leads will fit most modern Yamahas. Check your
aux light connector before ordering.

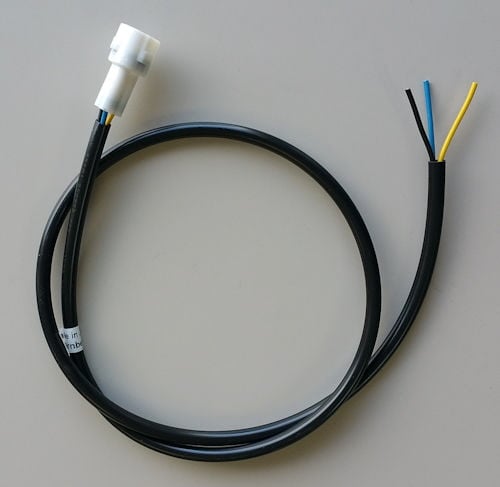

Power Leads for
Aux Light Connector (DIY aux lights etc)
You can use this adapter to power GPS, Aux Lights, and any
other accessory using low or medium current draw. Wires,
connectors, and sheathing are high temp, highest quality, Japan
made and assembled by Eastern Beaver.
Three 16 AWG wires: ground,
switched power and always hot power
Power Leads for Tenere Aux Light Connector 91cm
(36”) $16.95
|
|
Extra Connectors
for Splitter and Leads above
3 Position .090 Waterproof MT Connector.
L - Fits wires from .5mm - 1.25mm (20 -
16 AWG).
S - Fits
wires from 0.25mm - 0.5mm (28 - 20 AWG).
|
|
|
|
|
3P Set L $4.49 ea
|
|
|
|
3P Set S $4.49 ea
|
|
|
|
|
|
|
3P Male L $2.95 ea
|
|
|
3P Male S $2.95 ea
|
|
|
|
|
|
3P Female L $2.25 ea
|
|
|
3P Female S $2.25 ea
|
|
|
|

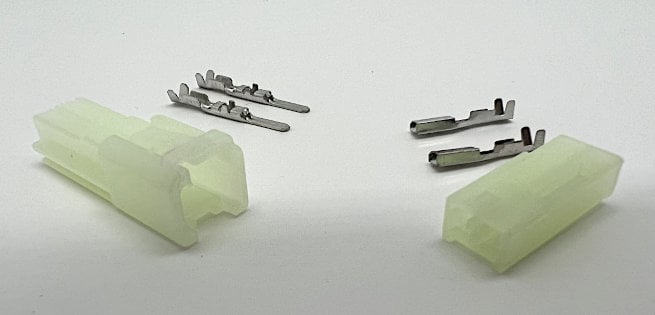

T700 - Front 2 Pin Accessory Port Connector
Sold as a set or female and male
separately. Pins are included with each connector.
2 Position .090 unsealed Connector (
Tenere 700 Front 2 Pin Accessory Port )
May be used on other Yamaha bikes.L -
Fits wires from .5mm - 1.25mm (20 - 16 AWG).
.
|
Automotive
DJY7021A-2.3-21 |
|
|
|
2P Set L
$2.10 ea
|
|
|
|
|
|
|
|
|
|
Supere Tenere - High Beam Splitter |
This cable provides a break out for the high beam/pass
signal, for dimmers or relays. It does not include a
ground connection. If you use this as an input for
a dimmer and experience flicker on your led light, a
noise filter may be required. The Eastern Beaver
EB-DimR has such a noise filter built in.
|
|
|
Super Tenere XT1200Z High Beam Splitter $18.95
|
|
To access the headlight control
connector, remove the right side front fairing. It is
usually inside one of the black connector shells just below
the right indiator.
|
