ON THIS PAGE: 3CS Heavy Duty - 4CS Sealed

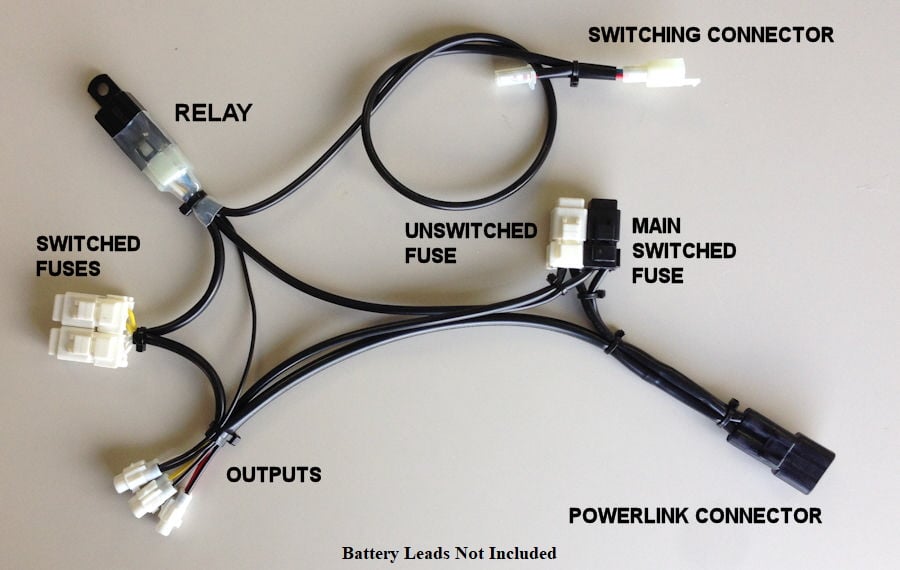

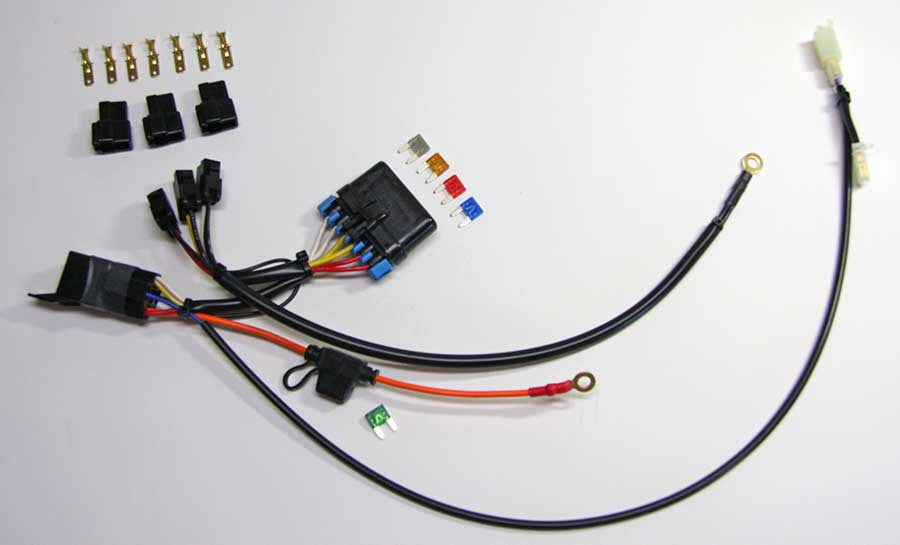

3 Circuit Solution HD (3CS-HD) for VStrom

This VStrom version of the 3CS-HD comes with my VStrom Rear Brakelight Connector Relay Switching Adapter, no need to tap any wires on the bike.

This Kit is like a small fuse panel that doesn’t take up much space. I gives you three fused circuits and the components just tuck into unused spaces around the battery. Headlight Relay Kits can be ordered with a male 2P250-TL-CNA connector factory crimped onto it’s main leads. This will allow you to plug these Kits into the 3 Circuit Solution HD. You can install the male 2P250-TL-CNA connector halves onto whatever circuit wires you add. I have chosen this type of connector because it has large enough terminals to carry a 20A current, and its terminals are easy to solder for the DIYer. Installation instructions and photos look here (PDF here) Switched circuits are turned off when the bike is shut down. An unswitched circuit is always hot so it can also be used for battery charging. 3 Circuit Solution HD for VStrom - All Fuses Switched  $59.95 Connection Option Battery M6 Ring Terminals Powerlink Connector Quantity: 3 Circuit Solution HD for VStrom - One Fuse Unswitched  $59.95 Connection Option Battery M6 Ring Terminals Powerlink Connector Quantity:

NEW - now with a Choice of direct Battery Connection as shown above, or a Powerlink Connection with a 2P heavy duty sealed male connector to plug into the Powerlink Battery Leads. This option allows you to use the Powerlink jumpstart system or add another high power circuit to the bike for high power horns etc.

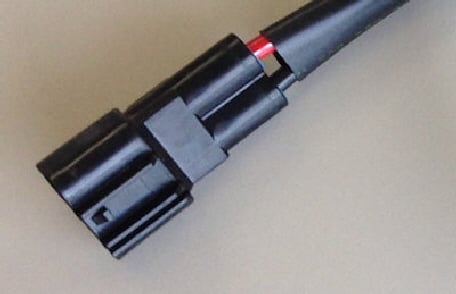

Powerlink Kit Connector Option

Powerlink Battery Leads for VStrom Battery lead lengths for VStrom are both 12 inches for VStrom, this pic only for illustration of the unit. 12” (31cm) $16.95 Quantity:

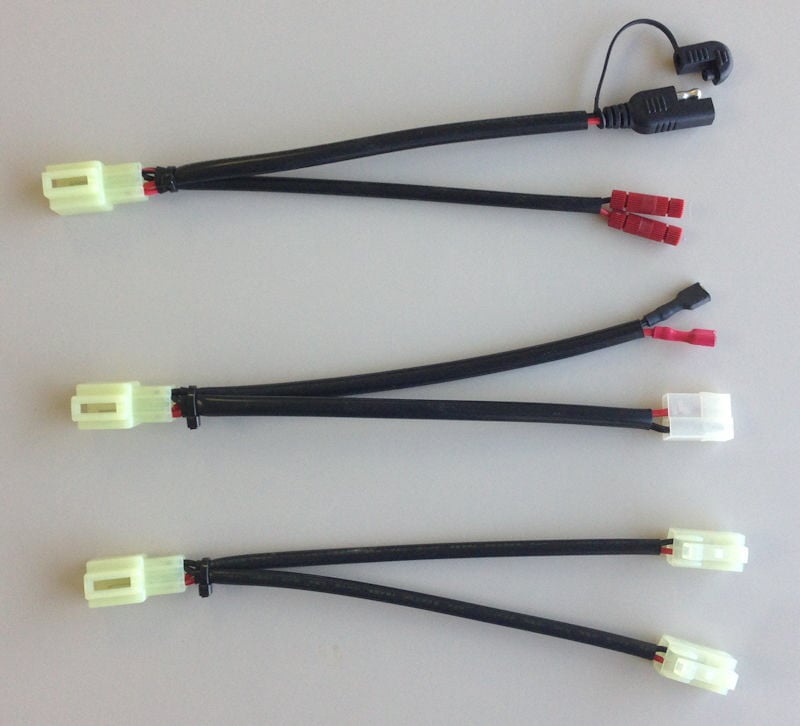

3CS HD Splitters

These splitters allow you to use an output for 2 circuits which will share the same fuse.

Made using high temp 18 AWG wire and high temp sheathing. Each side of the splitter is good up to 10A, total of 15A for the two sides.

Below are shown all the possible choices you can get, you can choose both outputs.

A set of 1824 Posi-Locks and an SAE plug with cap shown here. One T-Connector for Powerlet type sockets, and one set of insulated push on 1/4” females - use to connect one 3CS output to two different sockets. Two 3CS-HD outputs - use to split one 3CS output to two. 3CS HD Splitter $19.95 Option 1 Posi-Locks HD Connector T-Connector SAE Plug Push-Ons Option 2 Posi-Locks HD Connector T-Connector SAE Plug Push-Ons Quantity:

3CS HD Leads

3CS-HD Extension Leads These leads are an extension for the 3CS-HD outputs. Available in 3 lengths and made from the highest quality components. Made with high temp 16 AWG wire and high temp sheathing. 3CS-HD Extension Leads 80 cm (32”) $12.95 Quantity: 3CS-HD Extension Leads 120 cm (48”) $14.95 Quantity: 3CS-HD Extension Leads 160 cm (64”) $16.95 Quantity: 3CS-HD Leads with SAE Plug These leads are a complete solution to add an SAE plug to your 3CS-HD. Available in 3 lengths and made from the highest quality components. 2 Prong SAE Plug for battery chargers, etc., WITH 18 AWG wire. (NOW WITH SAE CAP) 3CS-HD Leads to SAE w/cap 80 cm (32”) $12.95 Quantity: 3CS-HD Leads to SAE w/cap 120 cm (48”) $14.95 Quantity: 3CS-HD Leads to SAE w/cap 160 cm (64”) $16.95 Quantity:

4 Circuit Solution Sealed (4CS-S) for VStrom

This VStrom version of my 3CS-Sealed comes with my VStrom Rear Brakelight Connector Relay Switching Adapter, no need to tap any wires on the bike.

This Kit is like a small fuse panel that doesn’t take up much space. These Kits gives you 4 fused circuits, 3 switched and 1 unswitched. The components just tuck into unused spaces around the battery. Please see our 4 Circuit Solution Sealed page here to find out more about these Kits, their options and accessories. We make splitters and leads for these kits too, see here.

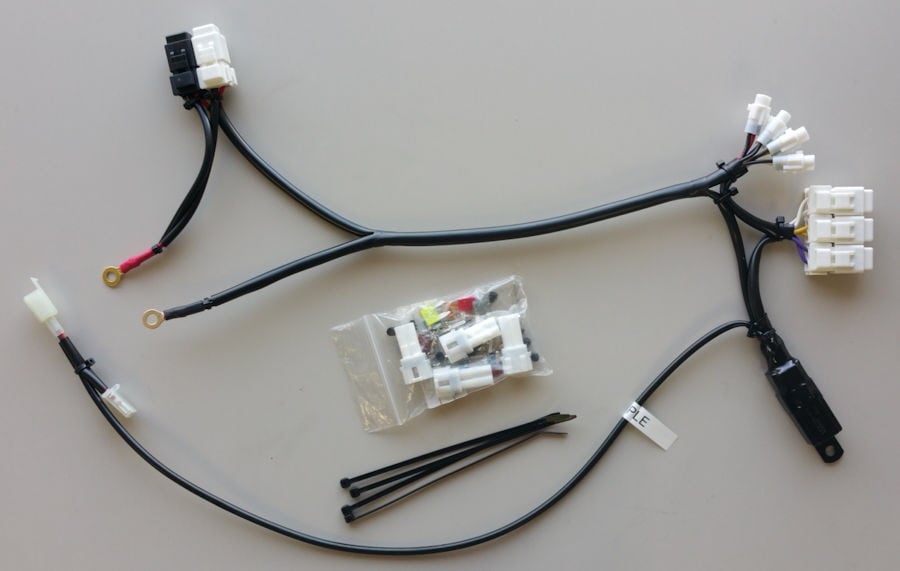

4 Circuit Solution Sealed for VStrom - with Battery Connection

4 Circuit Solution Sealed for VStrom - with Powerlink Connection (new pic coming)

The Powerlink Connection Option - mates up with our Powerlink Battery Leads to give you all the options of the Powerlink System. See our Powerlink Page for a full explanation. This option allows you to use the Powerlink jumpstart system or add another high power circuit to the bike for high power horns etc.

Powerlink Battery Leads for VStrom Battery lead lengths for VStrom are both 12 inches for VStrom, this pic only for illustration of the unit. 12” (31cm) $16.95 Quantity:

3CS Sealed  Leads and Extensions

Various pre-finished leads of the highest quality are available for running your circuit wires from the 3CS under the seat to up front to power a socket, SAE, aux lights, or other devices. Leads are available for a variety of power socket connections to plug in directly. Extensions can be used where you install the male connectors that come with the 3CS-S on the wires of your device (like an automotive socket with pigtails), everything then plugs together. Wires, connectors, and sheathing are high temp, highest quality, Japan made and assembled by Eastern Beaver.

3CS-S Extensions

- pre-made solutions to get from the 3CS Sealed to your accessory or splitter.

- 3CS Sealed male connector on one end and a female on the other end.

3CS-S Leads - these leads have specific terminating connectors for different accessories

3CS-S Leads with SAE Plug 2 Prong SAE Plug for battery chargers, etc., WITH 18 AWG wire. (NOW WITH SAE CAP) 3CS Leads Sealed (SAE) 80 cm (32”) $12.95 Quantity: 3CS Leads Sealed (SAE) 120 cm (48”) $14.95 Quantity: 3CS Leads Sealed (SAE) 160 cm (64”) $16.95 Quantity: 3CS-S Leads with T-Connector 2 Prong T-Connector for Powerlet and Hella type Socket - with 18 AWG wire 3CS Leads Sealed (TCON) 80 cm (32”) $12.95 Quantity: 3CS Leads Sealed (TCON) 120 cm (48”) $14.95 Quantity: 3CS Leads Sealed (TCON) 160 cm (64”) $16.95 Quantity: 3CS-S Leads with 1/4” Pushons 2 1/4” Sheathed Push-on Receptacles for Automotive Sockets etc. - with 18 AWG wire 3CS Leads Sealed (.250”) 80 cm (32”) $12.95 Quantity: 3CS Leads Sealed (.250”) 120 cm (48”) $14.95 Quantity: 3CS Leads Sealed (.250”) 160 cm (64”) $16.95 Quantity:

Lead Install Page

3CS Splitters

These splitters are designed to allow you to power even more accessories from your 3CS.

All splitters are 30 cm(12”) long.

They are made of high quality Yazaki wire of 0.75 sqmm (18 AWG), with high temp flexible sheathing.

You can order any of the combinations below and more. Pick the connectors you need for your accessories.

The Splitters below are examples of possible choices, and plug into the 3CS Sealed or the 3CS Sealed Leads above.

Two sealed 3CS outputs - use to split one 3CS output to two. One T-Connector for Powerlet type sockets, and one set of insulated push on 1/4” females - use to connect one 3CS output to two different sockets. Two sets of 1824 Posi-Locks for the ultimate in easy installations. Also use when you have devices with pigtails. Another output option (not shown) is a high quality SAE connector with cap. 3CS Sealed Splitter $19.95 Option 1 Posi-Locks Sealed Connector T-Connector SAE Plug Push-Ons Option 2 Posi-Locks Sealed Connector T-Connector SAE Plug Push-Ons Quantity:
