Spot and Fog Light Wiring Kits

Table of Contents

Accessory Light KIt Illustration
Professionally assembled accessory light wiring kits for motorcycles. Built with quality sealed Japanese Sumitomo connectors and Yazaki 100% copper core, multi-strand cables. Mesh sheath & Sumitomo heat shrink, covered for physical protection. Weatherproof switch with LED indication for ON/OFF. The relays used in these kits are 30A Panasonic units, but we rate it at 20A in our kits.

The Standard Kit is longer between the power source and the relay, but shorter on the relay to lights.

The Adventure or Dirt Bike kit is shorter on the battery to relay but longer on the relay to lights.

Rated at 20A total ( 10A/ light ) (280 watts total @ 14v ) – Perfect for connecting LED, HID or Halogen riding lights

PC 8 Acc Light 04

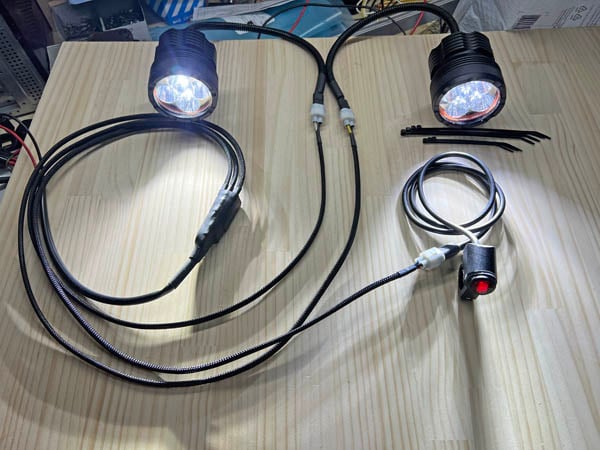

Fig 1: Sample connection show ( lights NOT included in wiring kits )

Standard Accessory Light Kit

Relay to accessory light 1 – 60cm ( 23.6″ )
Relay to accessory light 2 – 75 cm ( 29.5″ ).
Waterproof connections rated at 15A each. Highest quality wiring kit with Yazaki 100% copper wire, Sumitomo connectors and sleeving.

$49.95
demored pc 05 02

Adventure & Dual Purpose Bike Kit

Battery to relay – 40cm ( 15.8″ )
PC-8/PC-8R/CS Kit to relay – 70cm ( 23.6″ )
Relay to accessory light 1 – 110cm ( 43.3″ )
Relay to accessory light 2 – 120cm ( 47.2″ )
Waterproof connections rated at 15A each. Highest quality wiring kit with Yazaki 100% copper wire, Sumitomo connectors and sleeving.

$49.95

How To Measure Leads

Accessory Light KIt Illustration

Fig 4: Battery Connection Measurements

Accessory Light KIt Illustration 01

Figure 5: Fuse Box Connection Measurements

Custom Length Kit Request

Custom length kits can be up to 2.5m ( 98″ long ). You can specify the length from the battery or fuse panel to the relay, and then from the relay to the outputs. The switching lead will be the same length as the Light 1 output ( we recommend Light 1 be the shorter of the two Light leads ). Custom kits wil comes with a weatherproof illuminated switch that mounts to 22mm diameter bars. We will add other switch options at a later date.
Accessory Light KIt Illustration

Custom Accessory Light Kit

Price range: $68.95 through $81.95
Power Source
If Battery Source
Output Connectors
Name
