CRF1000L Accessory Cables
Table of Contents
Eastern Beaver manufactured accessory cables for the CRF1000L. All built with quality components to our high standard. We also offer some associated items such as connectors and push rivets, that are relevant to the CRF.
If you have a specific cable request, please emails us.
CRF1000L 6P Rear Accessory Splitter
Rear Accessory Splitter – for bikes with an alarm system (or anything else plugged into this connector) using the 6P connector under the passenger seat. This splitter allows normal hookup while providing hookup for our PC-8 or 3CS Kits.

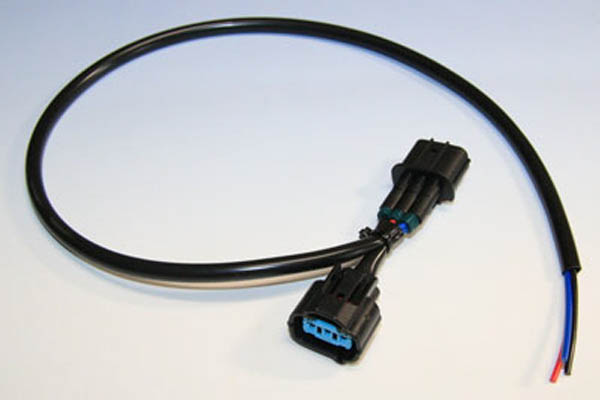

CRF1000L, CRF1100L, XL750 Brake/Tail Adapter
Version 1 – all wires are take-offs from stock wires. Red wire is brake, blue wire is tail, and black is ground.
Version 2 – brakelight wire has input (purple) and output (red) wires for BackOff type modulators. Tail light wire (blue) and ground (black) are take-offs from stock wires.
CRF1000L Headlight High Beam Break Out
Head light break out cable. Provides a 12v signal for accessory light kits & controllers such as the Eastern Beaver Dimmer. Please do not attach loads of more than 1A or you will effect your headlight brightness.
CRF1000L 6P Rear Accessory Lead
Rear Accessory Leads – plugs into the rear aux power connector with three 36” (92cm) 18 AWG wires you can connect your GPS etc to. Fused on the bike to 10A max. All high temp wires and sheathing, full time power, switched power, and ground wires. Blue wire is switched power, red wire is always on power, and black wire is ground.
CRF1000L & CRF1100L Signal & Plate Adapter Cable
Available with blue, orange or white connector. Available in two types: short 12 inches (30 cm) with female 4mm bullets, and 24 inches (61 cm) long with bare wires.

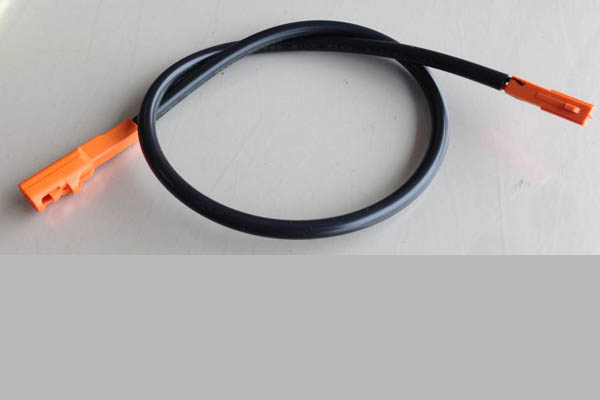

CRF1000L & CRF1100L Signal & Plate Extension Leads
CRF1000L & CRF1100L Signal Wires Extensions 16”(40cm)
CRF1000L, CRF1100L & XL750 Turn & Plate Light Splitter
Turn Signal Splitters (fit 1100 too) – with blue, orange, or white connectors. These units plug inline on the stock connectors give you two wire takeoffs for aux signals and other rear lighting devices requiring turn signal functions. White unit matches licence light connectors.

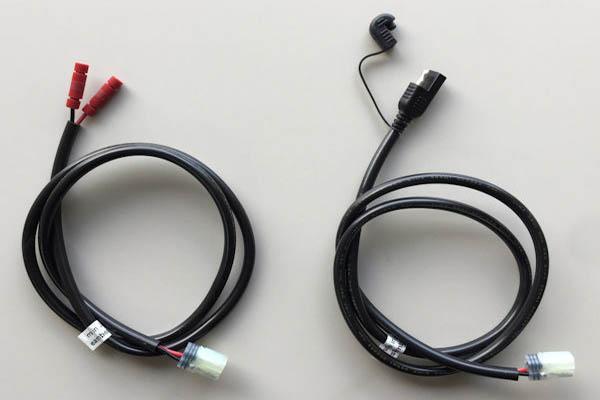

CRF1000 Front Power Leads
Turn Signal Splitters (fit 1100 too) – with blue, orange, or white connectors. These units plug inline on the stock connectors give you two wire takeoffs for aux signals and other rear lighting devices requiring turn signal functions. White unit matches licence light connectors.

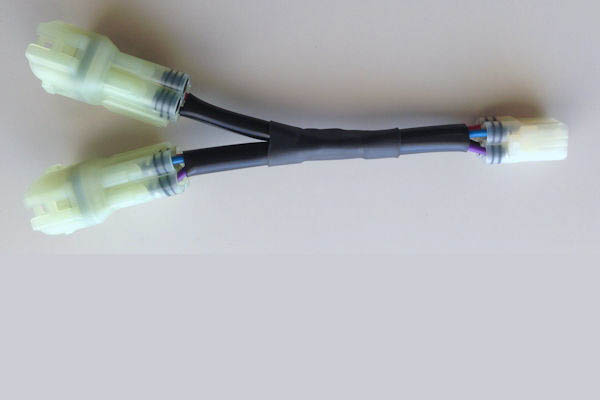

CRF1000L 4 Pin Front Power Splitter
Duplicate of Honda’s splitter but better, tougher, and cheaper. See below for accessory connections. One output connector is fully wired (4P), the other has power and ground only (2P). You can use either output connector to power and ground GPS, Heated Grips, Power Socket, and more. All wires are 18 AWG.
CRF1000L 6P to Plate Light Switching Adapter
Rear Accessory Leads – plugs into the rear aux power connector with three 36” (92cm) 18 AWG wires you can connect your GPS etc to. Fused on the bike to 10A max. All high temp wires and sheathing, full time power, switched power, and ground wires. Blue wire is switched power, red wire is always on power, and black wire is ground.

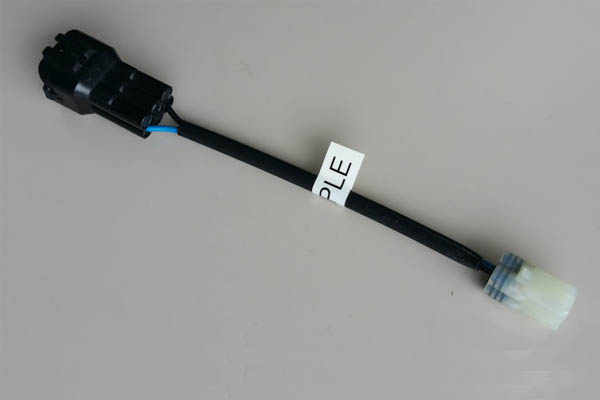

CRF1000 6P to 4P Rear Accessory Leads
This adapter plugs into our old PC-8 Kit’s 4P connector ( originally the PC-8 kit used the front Aux power port ). The current CRF1000 kit uses the rear Aux power connector ( 6P ) under the seat. So its an adapter from our old PC-8 kit to the current kit ( re the switching trigger input ).

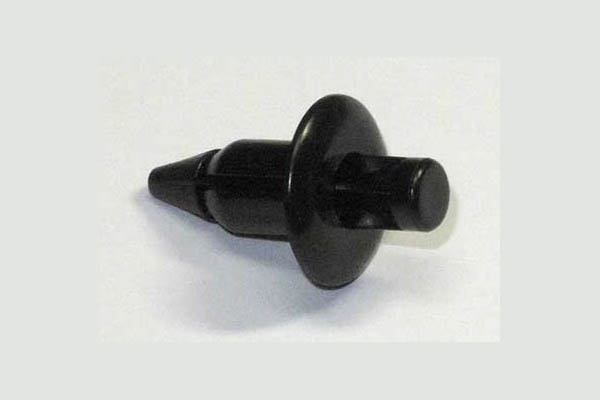

Plastic Push Rivets – [ CRF1000L & CRF1100L ]
Plastic Clips used on fairing on the CRF models. Made in Japan. OEM quality. Fits both the CRF1000L and the CRF1100L. Buy some spares.
2 Pin Sumitomo HC .050″ Connector
These connectors are used on the indicators and the number plate light connector. The terminals are quite small, so we recommend only to those experienced with crimping, or a lot of patience. On the connector page you can buy extra terminals
4 Pin HM 090 Sealed Connector
These connectors are used on the indicators and the number plate light connector. The terminals are quite small, so we recommend only to those experienced with crimping, or a lot of patience. On the connector page you can buy extra terminals
