CS HD Fuse Box Accessory Cables

Table of Contents

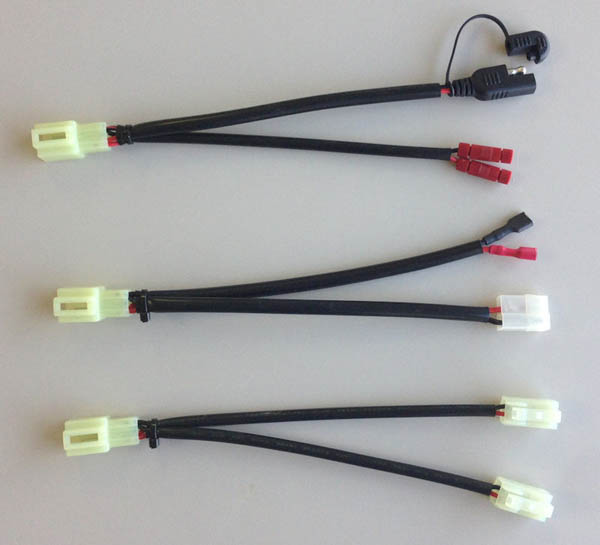

3CS HD Splitter

All CS HD Splitters are now a more compact 8″ (20cm).
One Input to Two Outputs – Option 1 is Output 1, Option 2 is Output 2.
Since each 3CS HD output is rated at 18A, the sum of the currents on both outputs should be 18A or less.

$19.95

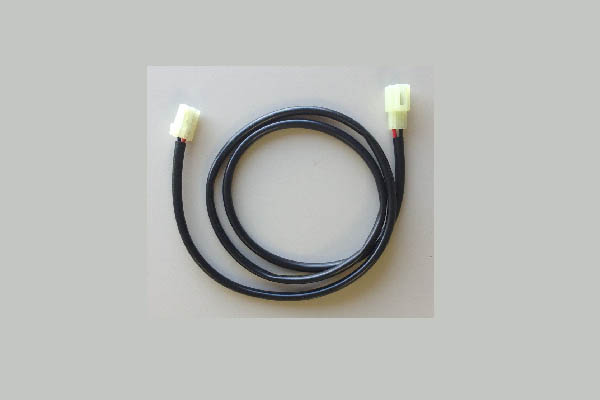

3CS HD Extension Leads

These leads are an extension for the 3CS-HD outputs. Available in 3 lengths and made from the highest quality components. Made with high temp 16 AWG wire and high temp sheathing.
Price range: $13.95 through $17.95

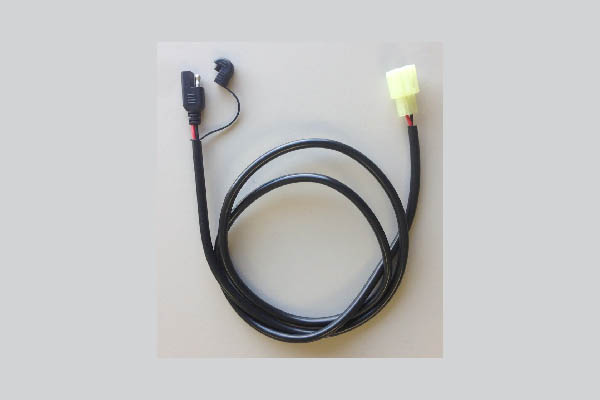

3CS-HD Leads with SAE Plug

These leads are a complete solution to add an SAE plug to your 3CS-HD. Available in 3 lengths and made from the highest quality components. 2 Prong SAE Plug for battery chargers, etc., WITH 16 AWG wire. (NOW WITH SAE CAP)
Price range: $14.95 through $18.95

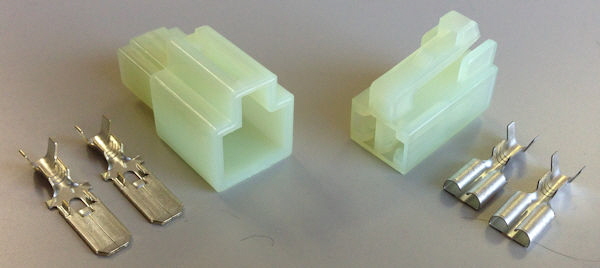

2 Pin Yazaki .250″ CN(A) Tang-less

Tough plastic housings with tin plated brass 2 sqmm terminal set. Click below to buy.
Price range: $1.78 through $3.50

Terminal CN(A) 312 Tang-less Brass

Choose your size according to the wire size to be used. Terminal ‘size’ is the maximum size wire it will take.

Price range: $0.12 through $0.26

Terminal CN(A) 250 Tang-less Plated

Choose your size according to the wire size to be used. Terminal ‘size’ is the maximum size wire it will take.

Price range: $0.12 through $0.26

Other Options

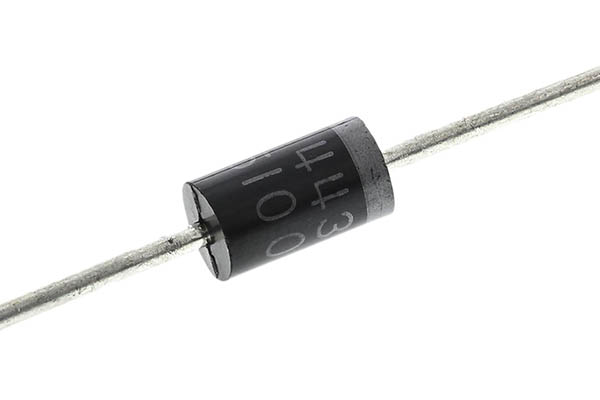

Protective Diode in Switching Wire Option

A protective diode can be ordered inline on the ignition switched lead, preventing reverse current flow back to the bike. This is highly recommended for CANBus bikes.

$5.95

MP280-Tree Clip

Easy Mount ‘Tree’ Clip: Pushes into a hole, to hold the 3 fuse holder in place. Clips onto the back of the cap. This is the clip only, does not include the cap ( which is provided with the 3CS HD Kit.

$0.95

Shrink Tube – SUMITUBE F2 (Z) -[30mm]

A large sheath of removable shrinktube is shrunk over the relay connection to provide water proofing for those who like to cross rivers and get their bike wet. You can also buy this shrinktube here and add your own weather proofing.
$1.60

Switching Lead Posi Tap Option

FREE – Switching Lead Posi-Tap Choice: I now give you a choice of a Posi-Tap to suit different wire sizes. Some bikes, especially CanBUS bikes have very small wires. The parking light wire definitely needs a PTA2022 it’s so small. There is no charge for this option but of course you must be buying a 3CS Kit above. See the Posi Products Page for info about Posi-Taps and their sizes. The Kit’s default is the PTA1800 which will fit most bikes but it’s nice to have the right size.

Order a few extra sizes from the Posi Products Page and make sure you have one that fits just right.

Price range: $0.00 through $1.00
