2 Circuit Solution

– These wiring kits are all part of a modular system that uses the same connectors and parts.
– We make various compatible extensions, leads, and splitters further down this page

For modest power requirements – easy to install, tough and rugged construction. Perfect for bike rentals, your second bike, etc. Max capacity 20A. Max each circuit 15A.
Switched version uses a small 20A relay as shown above. Output is only on when the bike is on. A switching lead must be connected to a switched POS source on the bike. A PosiTap is provided for easy and secure connection. Comes with mating sealed connectors, you can easily install on your wires, or buy pre-made leads, splitters, accessories and more on the Accessories Page. You can add a splitter to power two devices. All quality components and assembled by hand in Japan, by Eastern Beaver.

Table of Contents

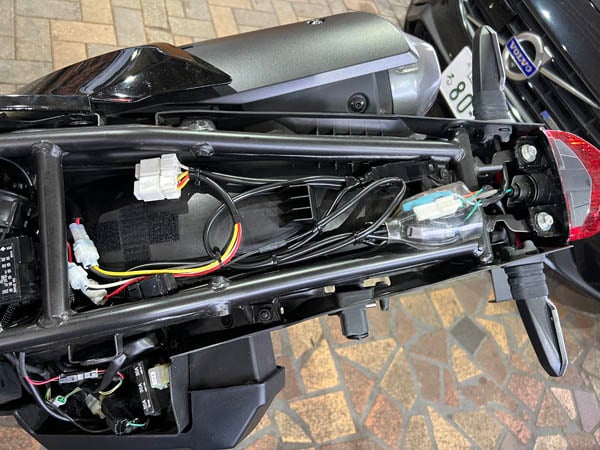

Honda CRF250L 2CS installed. Flexibility in where fuse holders and outputs are placed, making installing very easy.

2CS Sealed

Switched version uses a relay. It will switch both circuits on and off with the bike ignition.

Price range: $37.95 through $43.95

PowerLink Battery connection is included when selected above. Allows you to add PowerLink options including our jump-start cable. Also, provides an easy way to disconnect all accessories, when or if your battery is too weak to start the bike.

What does the PowerLink version offer?
♦ One point where all accessories can be disconnected. If your battery is weak, being able to disconnect all accessories, easily and at one point, can make starting easier.
♦ High current access to your battery, for jump starting. With the option PowerLink jumper cables, you can jump start the bike. They are compact enough to be carried on the bike all the time.
♦ A PowerLink splitter is available so you can connect both your accessories and a high power horn kit, or access for an air pump or other high current device.

2CS Sealed Un-Switched

Un-switched version, outputs are always on.

Price range: $22.95 through $37.95

CS Sealed Leads and Extensions

Various pre-finished leads of the highest quality are available for running your circuit wires from the CS Kit under the seat to up front to power a socket, SAE, aux lights, or other devices. Leads are available for a variety of power socket connections to plug in directly. Extensions can be used where you install the male connectors that come with the CS Kit on the wires of your device (like an automotive socket with pigtails), everything then plugs together. Wires, connectors, and sheathing are high temp, highest quality, Japan made by Eastern Beaver.

CS Kit Extensions

male connector on one end and a female on the other end, male plugs into a CS Kit output connector – then you can use one of the included (comes with every CS Kit) male connectors on your accessory wires to complete the circuit – give you a modular way to connect your circuits

CS Kit Leads - these leads have specific terminating connectors for different accessories

CS Kit Leads with SAE Plug

2 Prong SAE Plug for battery chargers, etc., WITH 16 AWG wire. (NOW WITH SAE CAP)

CS Kit Leads Sealed (SAE)

CS Kit Leads with T-Connector

2 Prong T-Connector for Powerlet and Hella type Socket – with 18 AWG wire

CS Kit Leads Sealed (TCON)

CS Kit Leads with .250″ Spade Connector

2 1/4” Sheathed Push-on Receptacles for Automotive Sockets etc. – with 18 AWG wire

CS Kit Leads Sealed (.250”)

CS Kit Sealed Splitter

These splitters are designed to allow you to power even more accessories from your CS Kit.

All splitters are 15 cm(6”) long.

CS Kit Sealed Splitter $19.95

Male connectors are included with each CS kit to install on your accessory’s wires, order more below to have spares, make up your own extensions and splitters, etc.

MT 090 connectors for the CS Kits. L and S relate to the wire size. For smaller wires use the S size. Order a Set, Female or Male.
