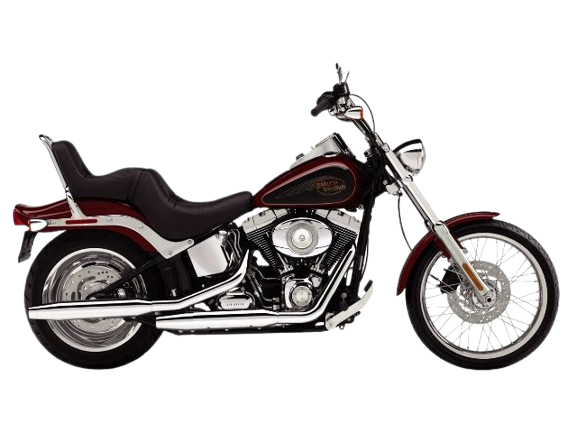

Harley Davidson Saoftail FXST 1580 [TC96] 2007-2010
Table of Contents
Harley Davidson FXST 1580 2CS Kit
The 2CS for the FXST TC96 provides 2 switched and fused outputs. Each output can be split into 2 outputs using a CS splitter cable ( giving 4 outputs ). Each output is capable of 15 Amps maximum, with total current for the 2CS kit limited to 20 Amps. The fuse holders hold the active fuse and a spare fuse. Quality Yazaki stranded copper wire and Sumitomo connectors. We don’t offer the PC-8 or PC-8R kits due to the space limitation, however they can be installed in external bags and if you want such a kit
please email us.
Harley Davidson FXST TC96 Tail Light Break Out
The tail light break out provides a lead for the following; Tail Light, Brake Light and a Ground connection. This allows you to add extra brake or tail lights and it also allows you to access a switched source for a fuse box or 2CS kit. A modified version is included with the 2CS kit.
Harley Davidson FXST TC96 Tail Light Connector
OEM Amphenol connectors for the tail light on TC96 and other Harley Davidson’s. Connectors include terminals. Amphenol Multilock .070″ 8 Pin Male & Female with Pins.
