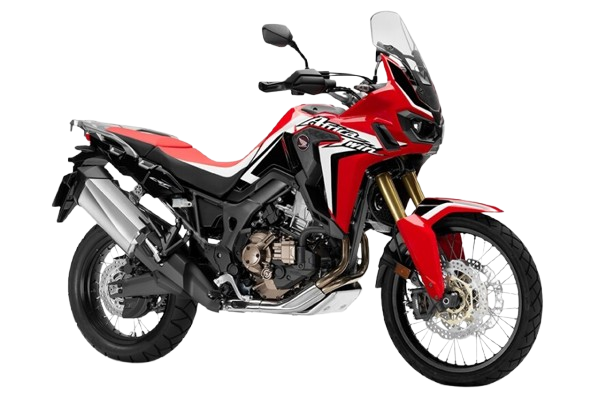

4 Circuit Solution Sealed Kit for CRF1000/1100

Table of Contents

– uses license light connector for switching input.
– 3 switched circuits are only hot when bike is on.
– 1 unswitched circuit that is always hot, can be used for battery charging.

– mating connectors, fuses, and cable ties are included.
– 35A total capacity – 20A total on the 3 switched circuits, and 15A on the unswitched circuit.
– This Kit uses all sealed connectors. The relay switching and ground wires plug into the existing license light connector in the under-seat area.

CRF1000 4 CS Fuse Box Kit

4 Circuit Solution with 3 ignition switched and 1 battery direct circuit. Available in standard format as M6 ring terminals to the battery or with a PowerLink connection to the battery. Also available in standard length ( under riders seat mount ) and long ( under pillion seat mount ). 35A capacity across all circuits, with 20A max on switched and 15A mac on battery direct.

Price range: $66.95 through $81.95

Optional Leads & Connectors

Various pre-finished leads of the highest quality are available for running your circuit wires from the CS Kit under the seat to up front to power a socket, SAE, aux lights, or other devices. Leads are available for a variety of power socket connections to plug in directly. Extensions can be used where you install the male connectors that come with the CS Kit on the wires of your device (like an automotive socket with pigtails), everything then plugs together. Wires, connectors, and sheathing are high temp, highest quality, Japan made by Eastern Beaver.

CS Kit Extensions

male connector on one end and a female on the other end, male plugs into a CS Kit output connector – then you can use one of the included (comes with every CS Kit) male connectors on your accessory wires to complete the circuit – give you a modular way to connect your circuits
Price range: $10.25 through $16.95

CS Kit Leads with SAE Plug

2 Prong SAE Plug for battery chargers, etc., WITH 16 AWG wire. (NOW WITH SAE CAP)

CS Kit Leads Sealed (SAE)

Price range: $10.95 through $18.95

CS Kit Leads with T-Connector

2 Prong T-Connector for Powerlet and Hella type Socket – with 18 AWG wire

CS Kit Leads Sealed (TCON)

Price range: $10.95 through $18.95

CS Kit Leads with .250″ Spade Connector

2 1/4” Sheathed Push-on Receptacles for Automotive Sockets etc. – with 18 AWG wire

CS Kit Leads Sealed (.250”)

Price range: $10.95 through $18.95

CS Kit Sealed Splitter

These splitters are designed to allow you to power even more accessories from your CS Kit.
All splitters are 15 cm(6”) long.

$19.95

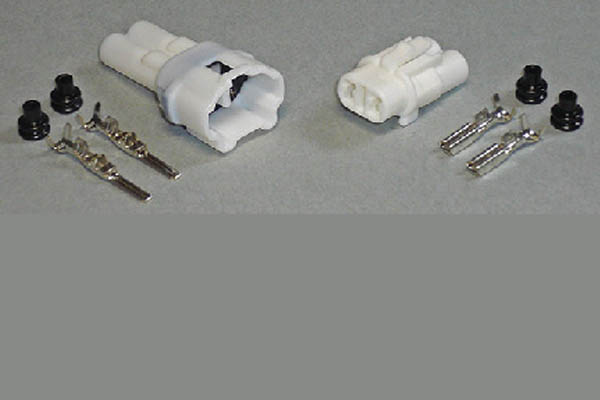

2 Pin .090 Sealed MT Connector

L – Fits wires from .5mm – 1.25mm (20 – 16 AWG).
S – Fits wires from 0.25mm – 0.5mm (28 – 20 AWG).

Small size tough plastic housing with inner seal. Seals on each wire.

Price range: $1.95 through $3.95
