CRF1100L Electrical Accessories
Table of Contents
CRF1100L 2 Pin Front Power Splitter
Front 2P Power Splitter ( CRF1100 ). Splitter for Front Fairing Accessory Power Connection.
Honda rates the front accessory power socket on the CRF1100 at 24w or 2A. It is fused by a 3A fuse that is tucked away to the left of the fuse box under a rubber sheath. The accessory socket connector on the 1100 is an 060 type connected compared to the 090 on the 1000. For higher current needs it’s a much better solution to use a 4CS or PC-8R and connect all your accessories to that. Both are plug and play so no modifications to your bikes wiring.

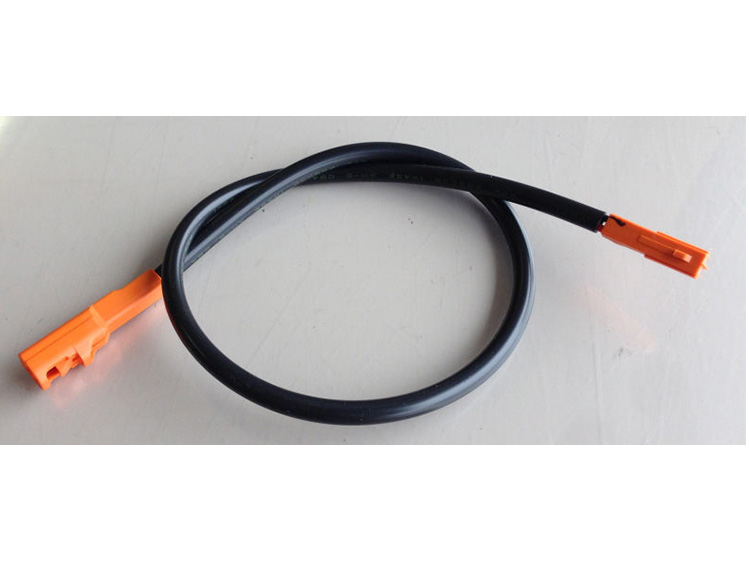

CRF1100L 2 Pin Front Accessory Cable
Cable for 2 pin front accessory connector on the CRF1100L.
CRF1000L, CRF1100L, XL750 Brake/Tail Adapter
Version 1 – these adapters allow you to install aux brake lights, and aux tail lights without splicing into or changing the stock wiring and connectors.
Version 2 – brake light wire has input (purple) and output (red) wires for Back-Off type modulators. Tail light wire (blue) and ground (black) are take-offs from stock wires.
Fits both CRF1000L AND CRF1100L Models

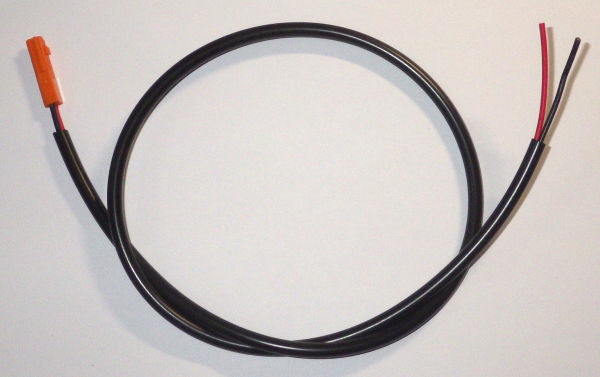

CRF1000L & CRF1100L Signal & Plate Adapter Cable
Signal or number plate light adapted cable. Connectors available in orange, blue or white. Two lengths available and with bullets or with bare wire. Use so you keep OEM connectors on the bike side when installing a tidy tail or moving indicators.
CRF1000L & CRF1100L Signal & Plate Extension Leads
CRF1000L, CRF1100L & XL750 Turn & Plate Light Splitter
CRF1100L Connectors
-
6098-3853, 6098-3857
$1.79 – $3.50Price range: $1.79 through $3.50- Select options This product has multiple variants. The options may be chosen on the product page
-
6098-3751, 6098-3752
$1.95 – $3.80Price range: $1.95 through $3.80- Select options This product has multiple variants. The options may be chosen on the product page
-
8100-1469 , 8100-1462
$0.10 – $0.18Price range: $0.10 through $0.18- Select options This product has multiple variants. The options may be chosen on the product page
-
Sumitomo 6189-0596
$4.45- Select options This product has multiple variants. The options may be chosen on the product page
