CRF1100L Electronic Fuse Box

Table of Contents

PC-4E Manual

The PC-4E is the latest fuse box from Eastern Beaver. It uses electronic fuses instead of physical fuses. Fuses are reset on ignition cycle. LED’s indicate fuse status. The unit is rugged as heck. It is waterproof and can be used on marine equipment.

CRF1100L PC-8E Electronic Fuse Box

Electronics fuse box with 8 circuits, of which 2 is battery direct and 6 are switched. Rated at 45A continuous. Switched outputs are 5A, 5A, 15A, 10A, 10A and 15A respectively. Waterproof, rugged design. Circuits are reset, by cycling the ignition. No more replacing fuses. LED indicates eFuse status. Power good signal on front. No need for apps or phones to check status.

Price range: $164.00 through $178.00

CRF1100L PC-4E Electronic Fuse Box

Electronics fuse box with 4 circuits, of which 1 is battery direct and 3 are switched. Rated at 30A continuous. Switched outputs are 10A, 10A and 15A respectively. Waterproof, rugged design. Circuits are reset, by cycling the ignition. No more replacing fuses. LED indicates eFuse status. Power good signal on front. No need for apps or phones to check status.

Price range: $129.95 through $144.95

Option Accessories

CS Kit Extensions

– pre-made solutions to connect from the CS Kits to your accessory.
– male connector on one end and a female on the other end, male plugs into a CS Kit output connector – then you can use one of the included (comes with every CS Kit) male connectors on your accessory wires to complete the circuit – give you a modular way to connect your circuits

Price range: $10.25 through $16.95

CS Kit Leads with SAE Plug

CS connection to SAE. 2 Prong SAE Plug for battery chargers, etc., WITH 16 AWG wire. (NOW WITH SAE CAP)

Price range: $10.95 through $18.95

CS Kit Leads with T-Connector

CS connection to Powerlet & Hella connection. 2 Prong T-Connector for Powerlet and Hella type Socket – with 18 AWG wire

Price range: $10.95 through $18.95

CS Kit Leads with .250″ Spade Connector

CS connection to Powerlet & Hella connection. 2 Prong T-Connector for Powerlet and Hella type Socket – with 18 AWG wire

Price range: $10.95 through $18.95

CS Kit Sealed Splitter

These splitters are designed to allow you to power even more accessories from your CS Kit.
All splitters are 15 cm(6”) long.
They are made of high quality Yazaki wire of 0.75 sqmm (18 AWG), with high temp flexible sheathing.
You can order any of the combinations below and more. Pick the connectors you need for your accessories.

$19.95

2 Pin MT 090 Sealed Connector.

2 Pin MT 090 waterproof connectors. As used on CS kits. Includes terminals and seals.

Price range: $1.95 through $3.95

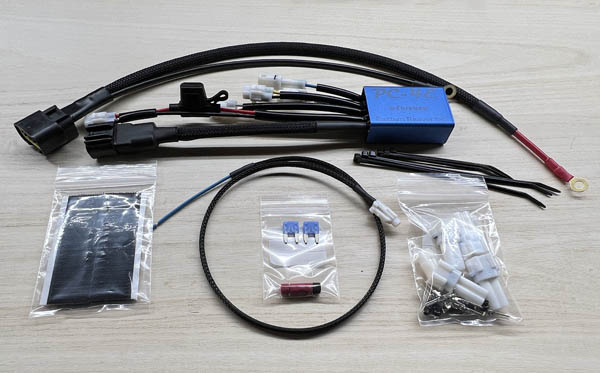

Kit Checklist

Packing List

  • PC-4E Electronic Fuse Box
  • Switching Lead
  • PowerLink to Battery Lead
  • 2 x 150cm Pigtails
  • 2 x 50cm Pigtails
  • 4 x MT 090 Male Connectors with Seals & Terminals
  • Velcro – 2 Strips
  • Installation Notes:
