Honda NC750/700 – 4CS Fuse Panel Kit
This kit was developed for the 2018 NC750X, other models will also fit if they have the 6P aux power connector on the left side below the frunk.

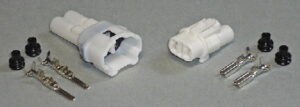

2 Pin MT 090 Sealed Connector.
CS Kit output connectors – extra’s. For those that want to make their own cables.

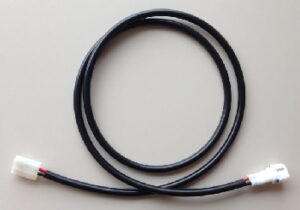

CS Kit Extensions
CS Kit output extension cables.
CS Kit Leads with SAE Plug
2 Prong SAE Plug for battery chargers, etc., WITH 16 AWG wire. (NOW WITH SAE CAP)
CS Kit Leads with T-Connector
2 Prong T-Connector for Powerlet and Hella type Socket – with 18 AWG wire
CS Kit Leads with .250″ Spade Connector
2 1/4” Sheathed Push-on Receptacles for Automotive Sockets etc. – with 18 AWG wire

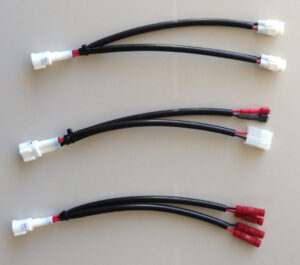

CS Kit Sealed Splitter
These splitters are designed to allow you to power even more accessories from your CS Kit.
All splitters are 15 cm(6”) long.
Honda NC750/NC700 – 6 Pin Aux to 3 Outputs Splitter

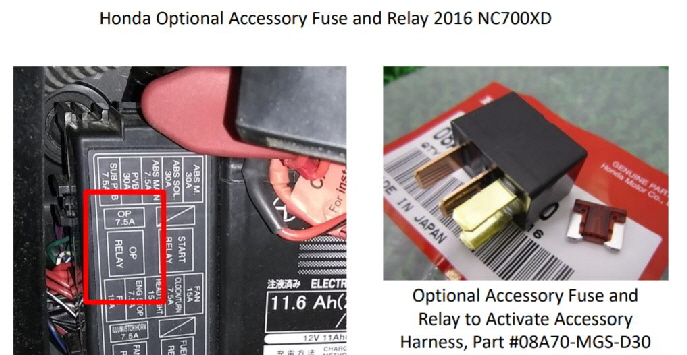

This harness duplicates (betters) Honda’s at a lower price. We make them ourselves. The relay and fuse fit into the open slots in the bike’s relay/fuse panel. You can plug in Honda’s Heated Grips, Power Socket, and Fog Lights.

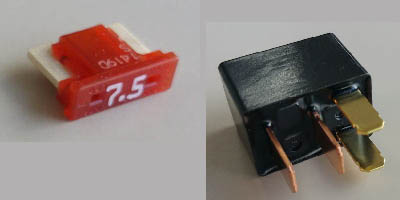

Honda NC750/NC700 – Relay & Fuse
This harness duplicates (betters) Honda’s at a lower price. We make them ourselves. The relay and fuse fit into the open slots in the bike’s relay/fuse panel. You can plug in Honda’s Heated Grips, Power Socket, and Fog Lights.
Honda NC750/NC700 – 6 Pin Aux Cable
This connector plugs into the stock 6P aux power connector and gives you 36” (92cm) of high temp 16 AWG wire with high temp sheathing.

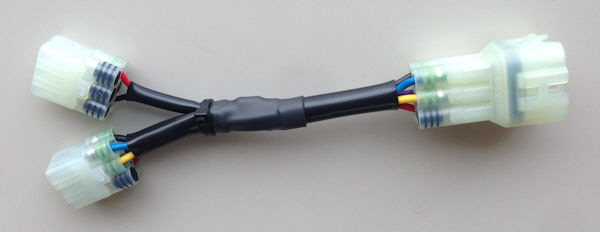

Honda NC750 & NC700 – 6P Frunk Accessory Splitter
This connector plugs into the stock 6P aux power connector and gives you 36” (92cm) of high temp 16 AWG wire with high temp sheathing.
Honda NC750/NC700 – Brake & Tail Breakout Cable ( 2016-2020 )
These units plug into the stock brake/tail light connector to add aux lighting or even a brakelight modulator (V2).
Power your top box lighting, your aux brake light, and more.
Honda NC750X /XD – PC-8R Kit (2021 – )
Accessory fuse box for the NC750X and NC750XD ( may fit other models ), from 2021 onward. Provides 6 switched and 2 battery direct, fused outputs. Both ground and power connections are provided. Compact size and high reliability. East installation, and plug an play connection. 30A total capacity with each output rated at 15A.
Honda NC750X/XD – Aux Splitter (2021 – )
These splitter plugs into the Aux Power connector under the left side cowl, just in front of the frunk. On some bike this port is used for a frunk USB. Adding this splitter provides another source of switched power for fuse box trigger inputs, or other low power accessories.
Honda NC750X/XD – Plate Light Breakout (2021 – )
For 2021 and later NC750X models ( may ft other NC750 models ). Provides a breakout from the number plate light connection to provide a source of switched power ( for accessory fuse boxes or additional tail lights ).
Honda NC750/NC700 – Brake & Tail Breakout Cable ( 2021- )
Brake/Tail Adapter Version 1 ( 2021 – Please check your tail light connector. Earlier models had a smaller 3 pin connector. )
These units plug into the stock brake/tail light connector to add aux lighting or use as a source of switched power for low current devices )
Power your top box lighting, your aux brake light, and more.
Brake/Tail Adapter Version 2 ( 2021 – Please check your tail light connector. Earlier models had a smaller 3 pin connector. )
This units plug into the stock brake/tail light connector to allow the addition of a brake light modulator
Red is the brake light signal from the bike to the modular ( usually power in )
Black is ground
Blue is tail light
Purple is brake light input to tail/brake light ( output from modulator )
Effectively this cable allows you to wire your modulator between the bike wiring and the brake light without modifying your bikes OEM wiring.
6 Pin HM 090 Sealed Connector.
These connectors are the same as the frunk connector.
