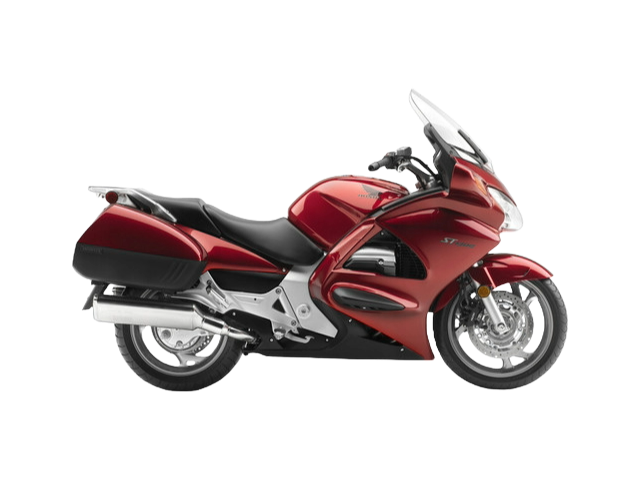

ST1300 Pan European
Table of Contents
PC-8R Accessory Fuse Box
This kit is plug and play. It provides 8 electrical accessory connections with 2 un-switched and 6 switched ( that power on when the bike is turned on ). You can connect trickle
chargers through the un-switched positions. USB chargers, Navigation systems, heated grips, radar detectors and other devices can be connected to the switched outputs.
Manufactured in Japan using RoHS and UL approved component, this accessory fuse box is built to last. Many owner transfer to their new bike when they upgrade, just buy
the appropriate wiring kit and use the same fuse box. Built to last!
This kit is rated at 40Amps, more than enough for the ST1300.
M6 Ring Terminal Version Shown.
Honda ST1300 Pan European PC-8R Fuse Box Kit
PC-8R plug and play kit for the ST1300. These kits are available with ring terminals for battery connection or the optional PowerLink connection. The PowerLink option allow connection of PowerLink accessories, such as the jump start cable. Both connection options are 40Amp kits.
Electrical Accessories
Connects to red diagnostic connector under seat.
Honda ST1300 Pan European Switching Lead
Switched power source for relay or accessory fuse box switching. Splitter so allows for an existing connection.
Honda ST1300 Pan European Simplified Quartet Harness
This Kit plugs into bike’s accessory connector give you a switched and an un-switched output, handy for powering low current accessories, switching a relay, etc. Un-switched red and black wires are 16 AWG. switched purple and black are 18 AWG.
Mating connectors and their terminals are included. Black wires are ground. The connector this harness plugs into is under the left side front fairing/cowl usually bundled with a few other connectors under a clear plastic cover.
Honda ST1300 Pan European SCS Jumper
When plugged into the diagnostic port, and the ignition is turned on, diagnostic codes are visible on the dash. Tested on 2008-2012 models. May work
on other year models. Make sure your bike has the 4 pin red diagnostic connector, under the right side ( under pillion seat ).OEM part number 070PZ-ZY3-0100
