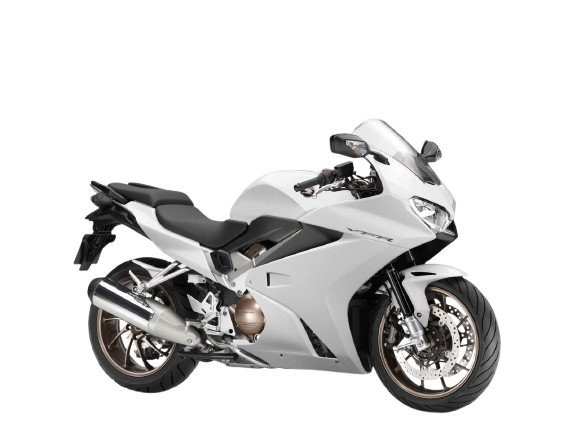

Honda VFR800
Table of Contents
Batter ring terminal version shown. PowerLink option also available.
Honda VFR800 Accessory Fuse Box- [14-21]
The PC-8R is a compact 40A capable accessory fuse box ( PDM ). With over 1,000 installations in its first year, it has proven itself a reliable and compact accessory fuse box. Provides 6 switched and 2 battery direct outputs. Plug and play installation.
The switching lead connects to a 2 Pin HM 090 connector on the rear left of the bike ( usually found in a clear plastic sheath that covers a bunch of connectors ). This is the plate light connector.
Accessories & Cables
Honda VFR800 Tail Light Splitter – [14-21]
Honda VFR800 tail light splitter. Can be used as a source of switched power. Plugs in-line with the tail light connection.
Dual Locks Strips – Two pairs of mating 3” (8 cm) Dual Lock strips. Great for many other projects too, this material has 5 times more holding strength than regular Velcro. Strips have excellent adhesive on the back. Clean surfaces with alcohol first.
Dual Lock Super Stong Velcro 2 Pieces
