2 Pin 62-Z 060 Sealed Connector
Price range: $2.29 through $5.50
7123-7820, 7122-7820
Description
2 Position Waterproof Connector. Includes terminals ( pins ) and seals and retainer.
Fits wires from .5mm – .85mm (22 – 18 AWG).
Retainers lock terminals in place.

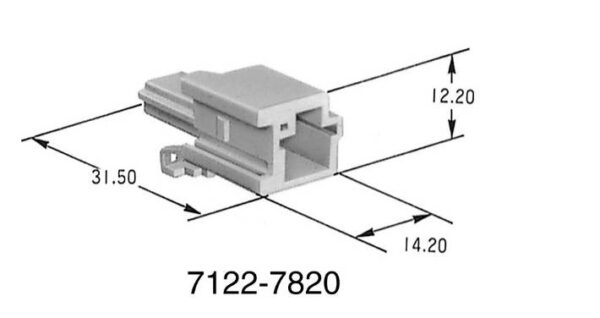

7122-7820 2P Male Connector
7123-7820 2P Female Connector
Terminals rated at 6A
Electrical Resistance: 5milli ohm Max.(Initial)
Insulation Resistance: 250Megohm Min.(at 500VDC)
Withstand Voltage: 1000V AC (1min.)
Male Terminal 7114-1305
Female Terminal 7116-1305
Seal 7157–3791–60
Additional information
| TYPE | 2 Pin Male, 2 Pin Female, 2 Pin Set |
|---|
