2 Pin HS 025 Sealed Connectors.
Price range: $2.90 through $6.20
7283-2090-30, 7282-2090-30
Description
2 Pin Yazaki HS .025″ ( 0.64mm ) connectors.
Retainers lock terminals and seals in place. Includes seals and terminals, extra available separately
Fits wires from 0.3 3mm² to 0.53mm² (AWG 24-20)
Reference Numbers:

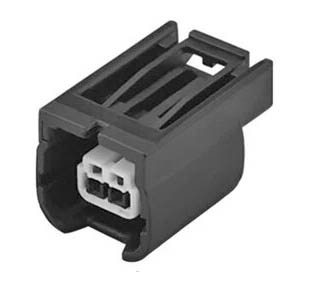

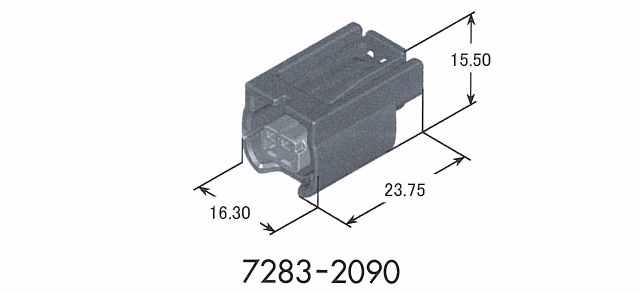

7283-2090-30 female connector

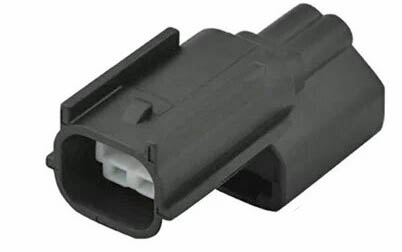

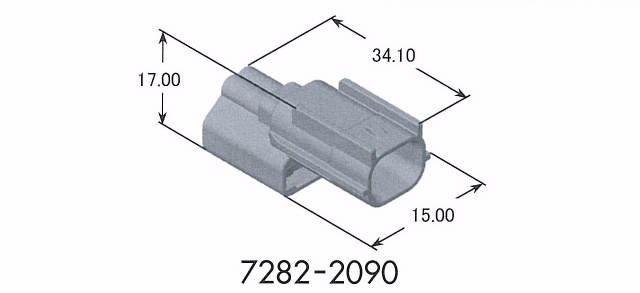

7282-2090-30 male connector
7116-4415-02 female terminal
7158-3166-60 Sea ( Green )
7158-3169-40 ( Dummy Plug )
Additional information
| Size | 2 Pin Female, 2 Pin Male, 2 Pin Set |
|---|
