2 Pin QLW 250 Sealed Connector
Price range: $4.15 through $8.00
2 Pin .250 Sealed Waterproof Connector
S size fits wires to 3 sqmm (12 AWG). L size fits wires to 5 sqmm (10 AWG).
Complete with terminals and seals.
Description
2 Pin .250″ Sealed Waterproof Connector
S size fits wires to 3 sqmm (12 AWG). L size fits wires to 5 sqmm (10 AWG).
Complete with terminals and seals. .
S size seals are Blue for 1 Pin and 2 Pin
L size seals are Green for 1 Pin and 2 pin
1 Pin and 2 Pin QLW use different color seals than 3 Pin QLW’s.

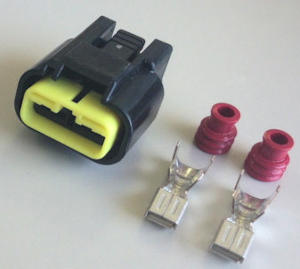

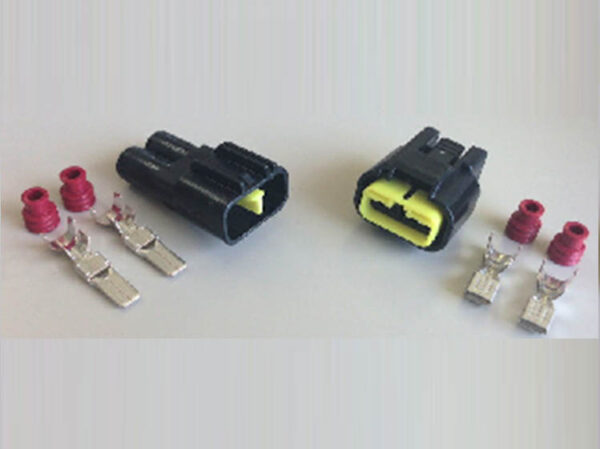

Seals in images are 3 Pin type. Correct type seals will be supplied.
Additional information
| TYPE | Set, Male, Female |
|---|---|
| SIZE | Small (Max 3mm² or 12AWG), Large (Max 5mm² or 10AWG) |
