2 Pin SSD 050 Sealed Connector
Price range: $2.95 through $6.40
7283-8720-30, 7182-8720-30
Description
2 Position Yazaki SSD Sealed Connectors.

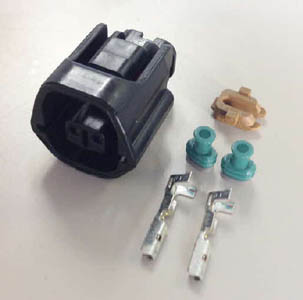

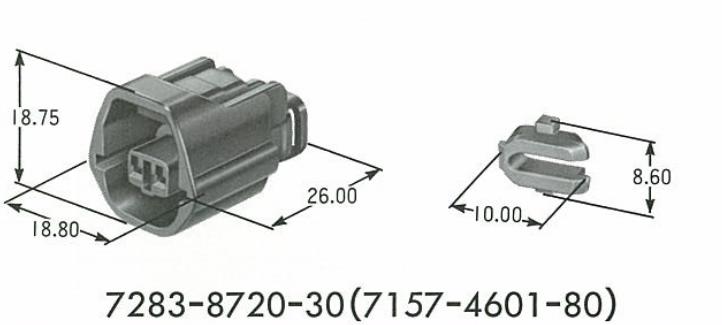

7283-8720-30 Female Connector

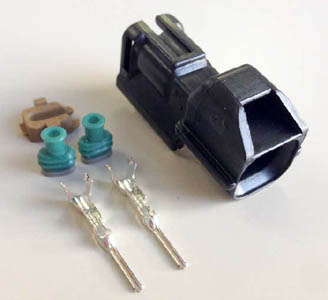

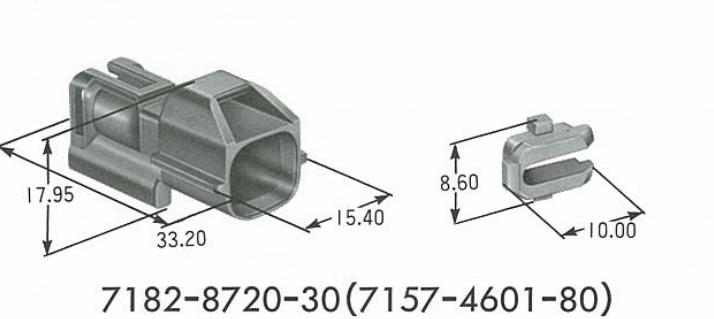

7182-8720-30 Male Connector
Retainers, lock terminals and seals in place.
Now available with two sizes of seals:
(S fits wire up to .5 sqmm – L fits wire up to .85 sqmm).
Terminals will fit wire up to .85 sqmm (18 AWG)
These seals have a hard plastic backing, small wire with thin insulation is recommended.
Additional information
| TYPE | 2 Pin Female, 2 Pin Male, 2 Pin Set |
|---|---|
| SIZE | Small – Seal, Large – Seal |
