2 Pin TS 090 Sealed Connector
Price range: $3.29 through $6.45
Sumitomo 6188-0266, 6189-0249
Description

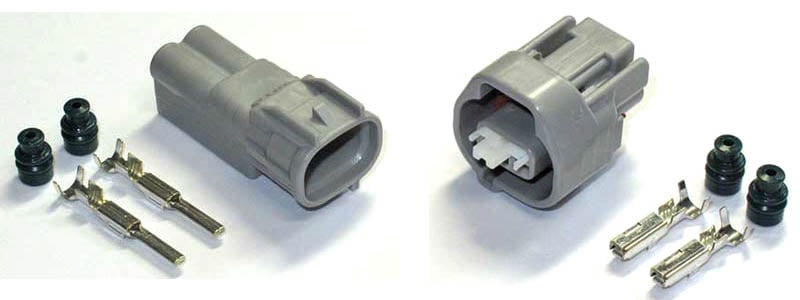

Sumitomo 2 Pin TS .090″ Series Connector. Sold as Set ( Male & Female ) Or Individually as Male or Female.
All connectors include correct terminals ( Pins ) and seals. Terminals and Seals are available in 2 sizes.
(NOTE – notch is on left bottom side, mate to above)
Large (16-14 AWG)
Small (24-18 AWG)
Part Numbers :

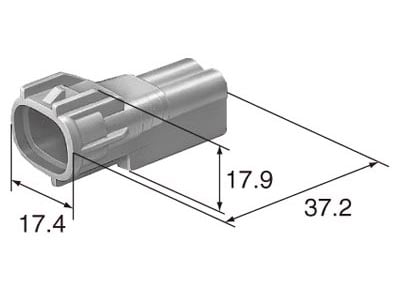

Sumitomo 6188-0266 Male Connector.

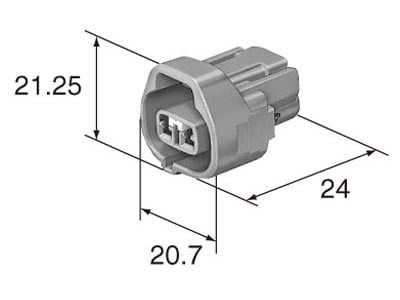

Sumitomo 6189-0249 Female Connector.
Toyota Part No: 90980-
Toyota Part No: 90980-
Additional information
| Size | 2 Pin Set – L, 2 Pin Set – S, 2 Pin Male – L, 2 Pin Male – S, 2 Pin Female – L, 2 Pin Female – S |
|---|
