2 Pin TS 090 Sealed Connector – ‘Special A’
Price range: $3.29 through $6.45
Sumitomo 6189-0100. 6188-0047.
Description
Sumitomo 2 Pin TS .090″ ‘Special A’ Series Connector. Fits Buell Accessory Power Connector.

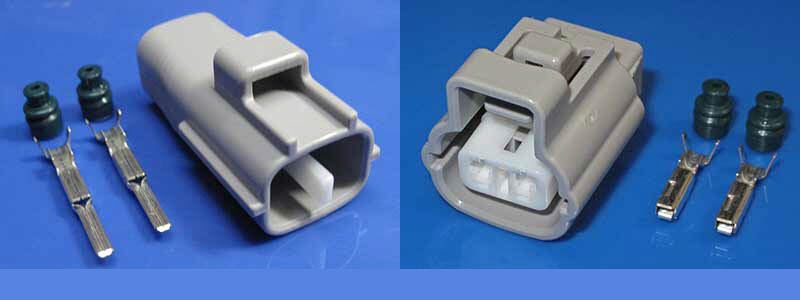

Sold as Set ( Male & Female ) Or Individually as Male or Female. All connectors include correct Terminals ( Pins ) and Seals.
Terminals and Seals are available in 2 sizes.
Large (16-14 AWG)
Small (24-18 AWG)
(NOTE – notch is on both sides ) There are three variations ( looking at the front of the female connector ):
Notch on both sides ( SPA ), Notch on Left, Notch on Right ( SPB ).
Part Numbers :

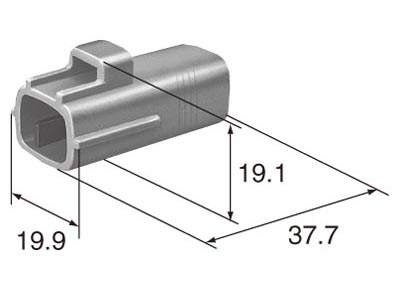

Sumitomo 6188-0047 Male Connector

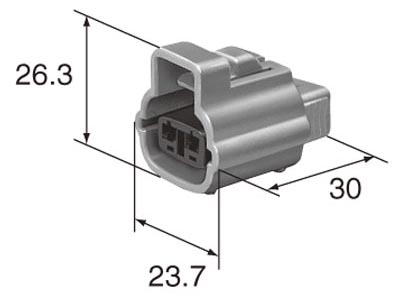

Sumitomo 6189-0100 Female Connector
Additional information
| Size | 2 Pin Set – L, 2 Pin Set – S, 2 Pin Male – L, 2 Pin Male – S, 2 Pin Female – L, 2 Pin Female – S |
|---|
