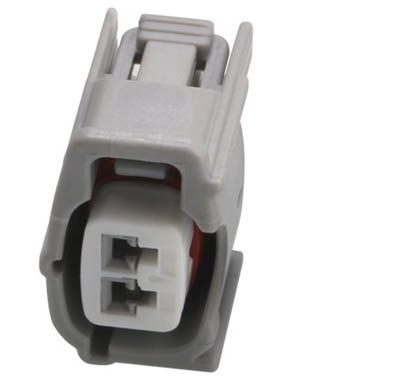

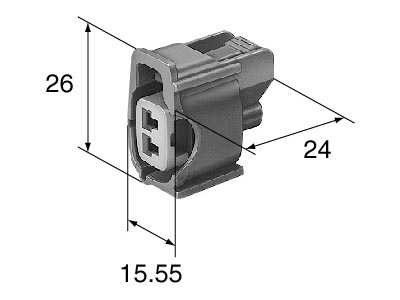

2 Pin TS 090 Sealed Connector – ‘Special C’
$2.15
Sumitomo 6189-
Description
Sumitomo 2 Pin TS .090″ ‘Special C’ Series Connector. Used in some Fuel Injection Applications.
Female only available. All connectors include correct Terminals ( Pins ) and Seals.
Terminals and Seals are available in 2 sizes.
Large (16-14 AWG)
Small (24-18 AWG)
NOTE – This is a vertical type connector with the latch on the narrow side. The notch is on left bottom, no Male version.
There are four variations ( looking at the front of the female connector ):
Horizontal ( latch on the top ) with Notch on both sides ( SPA ), Notch on bottom Left, Notch on bottom Right ( SPB ).
Vertical ( latch on the top ) with Notch on the bottom left.
Part Numbers :
Sumitomo 6189-
Toyota Part No: 90980-11875 ( 11875W9A02F-
Honda Acura RDX 410cc injectors
Additional information
| Size | 2 Pin Female – L, 2 Pin Female – S |
|---|
