26 Pin Superseal 1.0 Sealed Connector – [Aftermarket]
Price range: $3.80 through $9.00
3-1437290-7
Description
26 Pin aftermarket Superseal type 1.0mm Sealed Connector. They are. 3mm pitch 26 pin connector with 4 rows.
This is an automotive connector. One of the uses is on the Tenere 700 Dash for the 2025 model and possibly more.
Due to the circular shape of the terminals, this connector is rated at 10A/contact. The material is abs plastic. The connector is black and the seal is a reddish brown.
Connectors come with terminals. Blanking plugs are available separately. Seals are built into the connector.

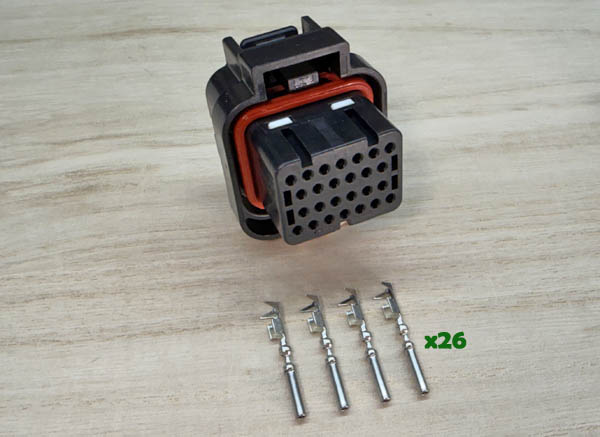

The keying on this connector is 2 on the top towards the outer edges and one on the bottom, in the center. This is reference to the
front of the female connector. Female connectors take female terminals.

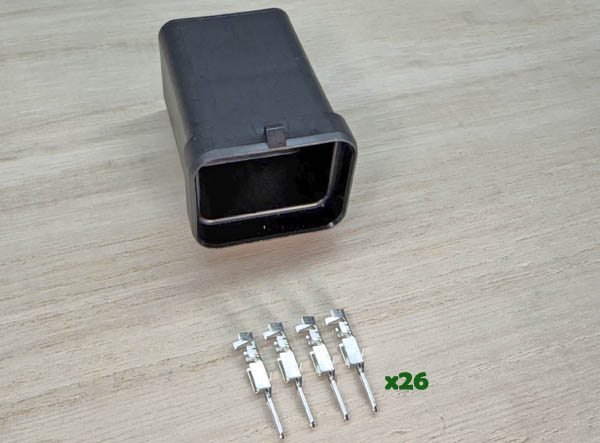

The male connector hold male terminals. Aftermarket connectors ( male/female ) available separately or as a set.
The terminals in OEM connectors are gold plated for better contact. Aftermarket connectors like these, use tin plated brass terminals, however
a male connector, crimp type, is available.
Additional information
| TYPE | 26 Pin Female, 26 Pin Panel Mount Male, 26 Pin Set |
|---|
