26 Pin TE Superseal 1.0 Sealed Connector
Price range: $15.00 through $39.00
3-1437290-7, 6437288-6
Description
26 Pin TE Superseal 1.0 Sealed Connector. Manufactured by TE. 3mm pitch 26 pin connector with 4 rows.
This is an automotive connector. One of the uses is on the Tenere 700 Dash for the 2025 model and possibly more.
Due to the circular shape of the terminals, this connector is rated at 15A/contact. The material is Polybutylene Terephthalate, a
polyester. The connector is black and the seal is a reddish brown.

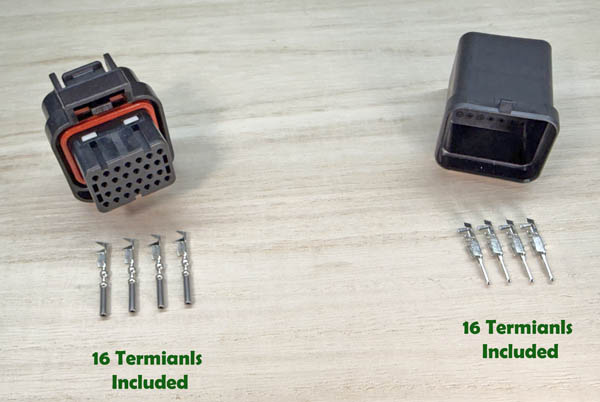

Connectors come with terminals. Blanking plugs are available separately. Seals are built into the connector.
The keying on this connector is 2 on the top towards the outer edges and one on the bottom, in the center. This is reference to the
front of the female connector. Female connectors take female terminals.
There is no inline male connector, only PCB mount or panel mount. The male connector hold male terminals. The male connector has
exposed pins for soldering. We have non Aftermarket connectors ( male/female ) available seperately.
The terminals in OEM connectors are gold plated for better contact. Aftermarket connectors use tin plated brass terminals, however
a male connector, crimp type, is available.
Additional information
| TYPE | 26 Pin Female, 26 Pin Panel Mount Male, 26 Pin Set |
|---|
