3 Pin Amphenol AT – Sealed Connector ‘Deutsch’
Price range: $3.00 through $6.70
AT06-3S, AT04-3P
Description
3 Position Amphenol AT series ( Deutsch ) sealed connector
Fits wires from .75mm – 1.25mm (18 – 16 AWG).

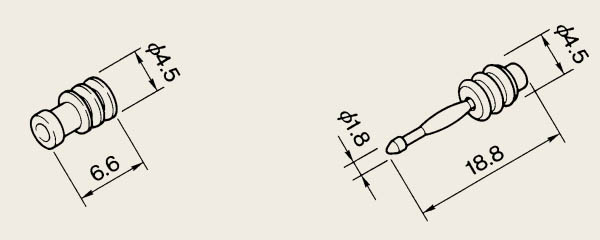

Retainer wedges lock terminals in place, seals on wire ends come in rear of housings.
Reference Information:

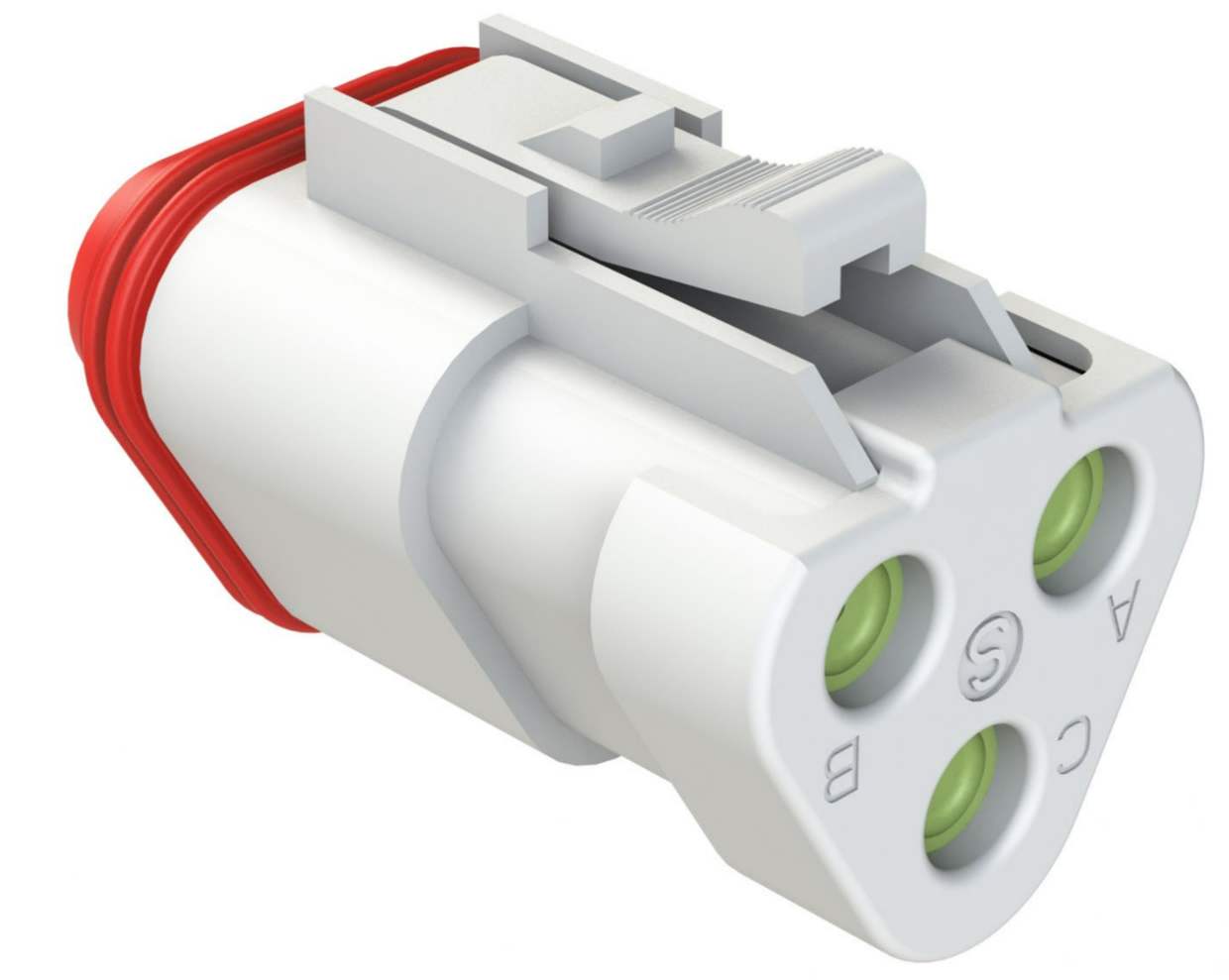

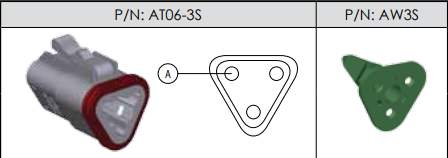

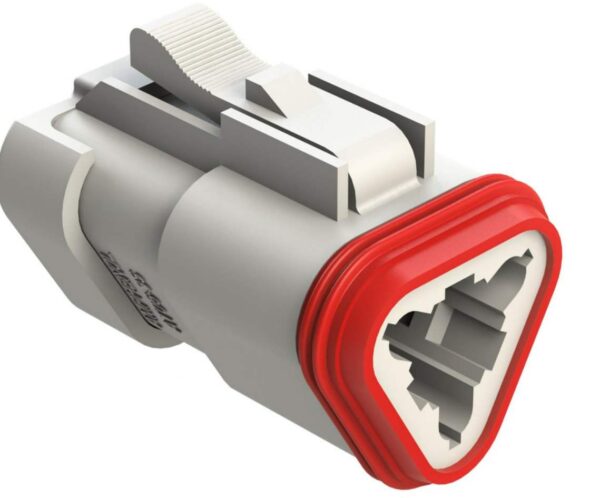

AT06-6S Female Connector

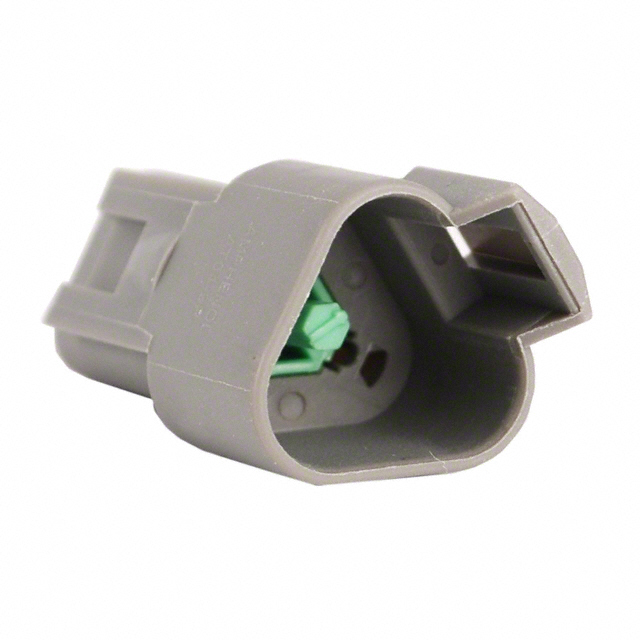

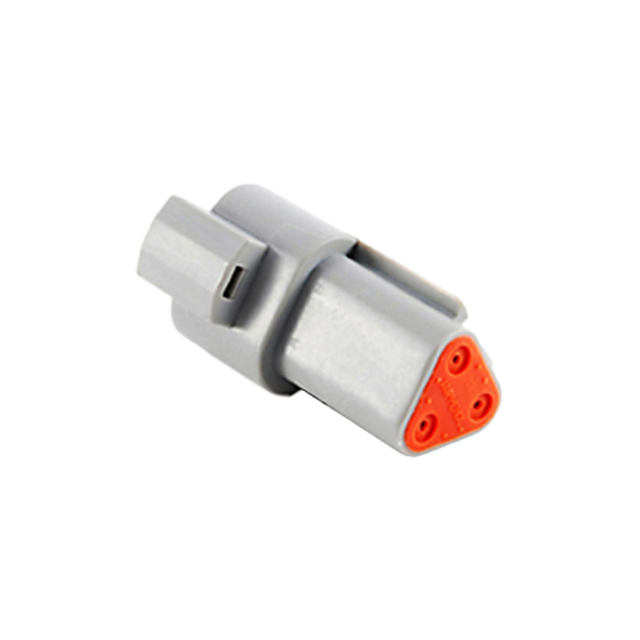

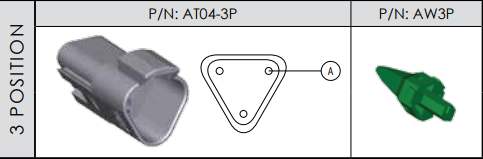

AT04-3P Male Connector
Current rating: 13A ( Max )
Operating Temperature: -55°C to +125°C at rated current.
Dielectric Value: Meets or exceeds 1500 volts minimum.
NOTES ON INSTALLING:
1 – remove rear seal, push wires through seal
2 – strip wires, crimp/solder on terminals
3 – insert terminals into rear of housing until they click into place
4 – push seal up wires into housing
5 – push wedge in until it clicks in place
6 – make sure matching wires will mate, before inserting in second housing
Additional information

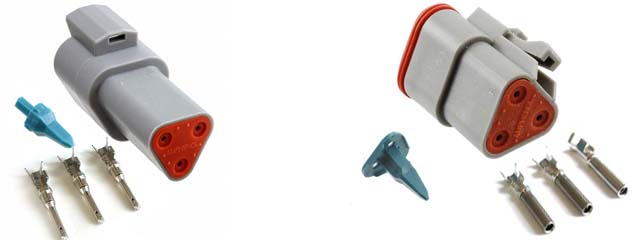

| Type | 3 Pin Female, 3 Pin Male, 3 Pin Set |
|---|
