3 Pin SSD 050 Sealed Connector
Price range: $3.49 through $7.10
7283-8730-30, 7182-8730-30
Description

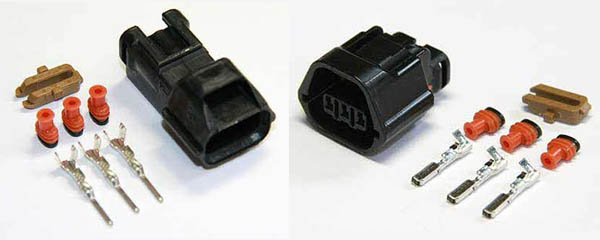

3 Position Yazaki SSD Sealed Connectors.

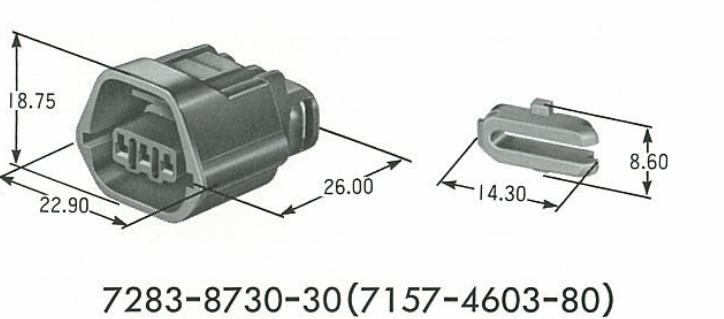

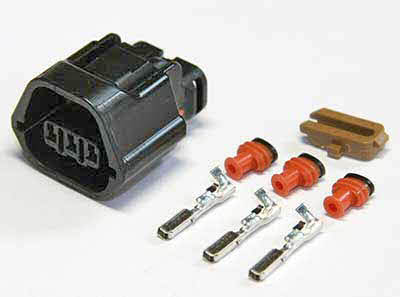

7283-8730-30 Female Connector

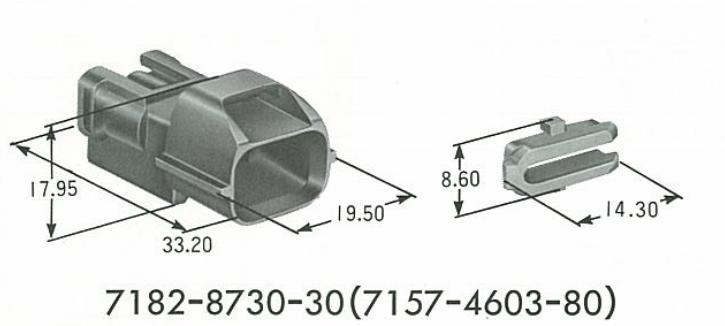

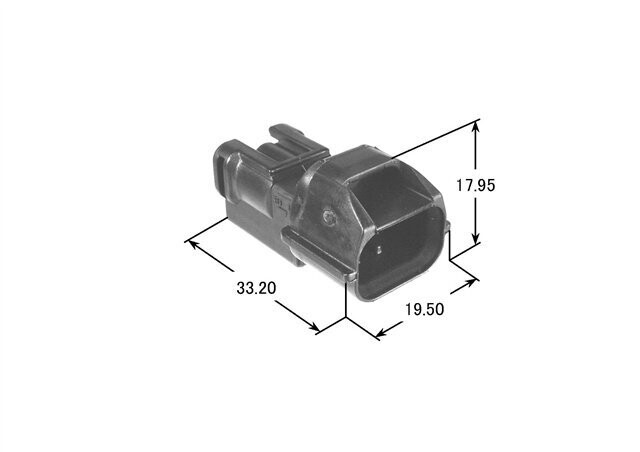

7182-8730-30 Male Connector
Retainers, lock terminals and seals in place.
Now available with two sizes of seals:(S fits wire up to .5 sqmm – L fits wire up to .85 sqmm).
Terminals will fit wire up to .85 sqmm (18 AWG)
These seals have a hard plastic backing, small wire with thin insulation is recommended.
Allowable Current(Ref.): 5A(Ref)
Low Level Contact Resistance: 3milli ohm Max.(Initial)
Insulation Resistance: 100Megohm Min.(at 500VDC)
Withstanding Voltage: 1000V AC (1min.)
Temperature Range: -40 to 120deg.C
Additional information
| Type | 3 Pin Female, 3 Pin Male, 3 Pin Set |
|---|---|
| Size | Small – Seal, Large – Seal |
