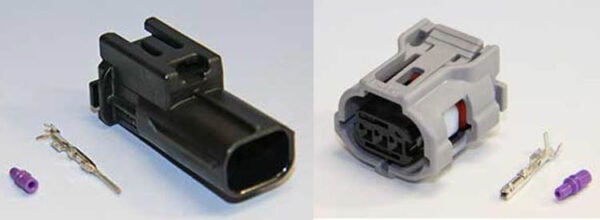

3 Pin TS .025″ Sealed Connectors
Price range: $3.42 through $8.30
6189-1132, 6188-4920
Description
3 Pin TS .025″ Sealed Connectors ( 0.64mm ). Includes seals and terminals, extra available separately. Available as female, male or set. Manufactured by Sumitomo in Japan. Highest quality. Tin plated brass pins for durability. Silicone seals. Seals available in 3 sizes. Red is largest, Violet is medium and green is the small size.

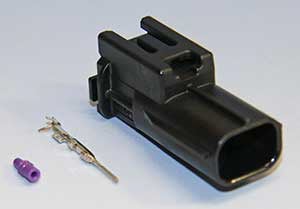

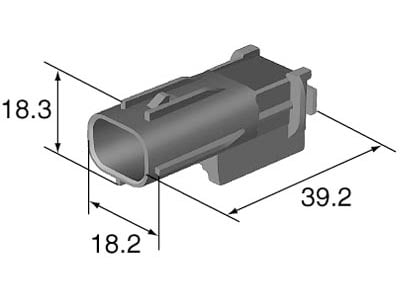

6188-4920 Male 3 Pin

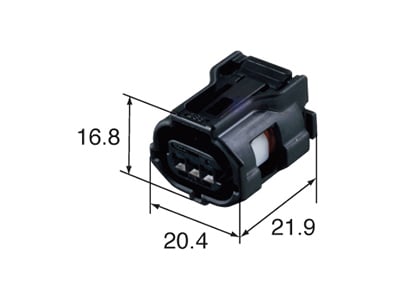

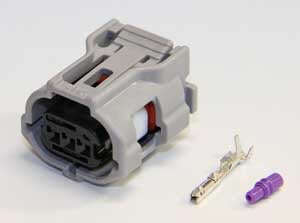

6189-1132 Female 3 Pin
8100-3617 Male Terminals
8100-3455 Female Terminals
7165-1312 Seal Large Applicable wire size 0.35-0.5mm²
7165-0796 Seal Medium Applicable wire size 0.3mm²
7165-0891 Seal Small Applicable wire size <0.3mm²
Additional information
| TYPE | 3 Pin Female, 3 Pin Male, 3 Pin Set |
|---|---|
| SIZE | Large, Medium, Small |
