3 Pin TS 090 Sealed Connector – ‘TRI’
Price range: $3.50 through $7.50
Sumitomo 6188-0099, 6189-0179
Description

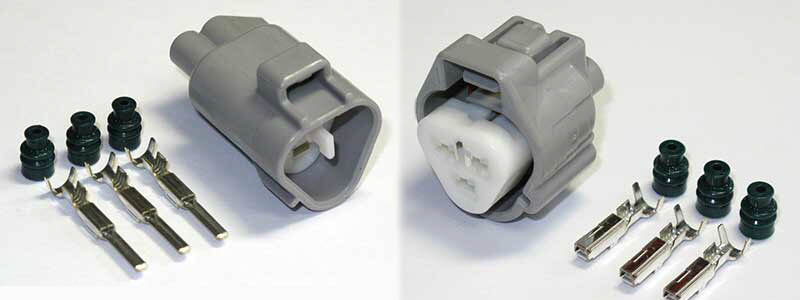

Sumitomo 3 Pin TS .090″ TRI Connector. All connectors include correct Terminals ( Pins ) and Seals.
Terminals and Seals are available in 2 sizes.
Large (16-14 AWG)
Small (24-18 AWG)
Notch on right side of Female when looping at mating face.
Part Numbers :

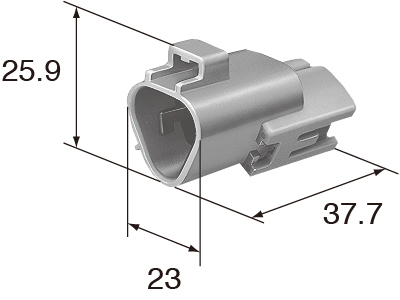

Sumitomo 6188-0099 Male Connector

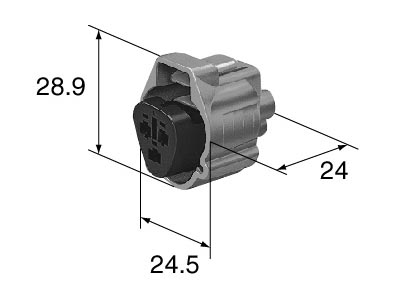

Sumitomo 6189-0179 Female Connector
Additional information
| Size | 3 Pin Set – L, 3 Pin Set – S, 3 Pin Male – L, 3 Pin Male – S, 3 Pin Female – L, 3 Pin Female – S |
|---|
