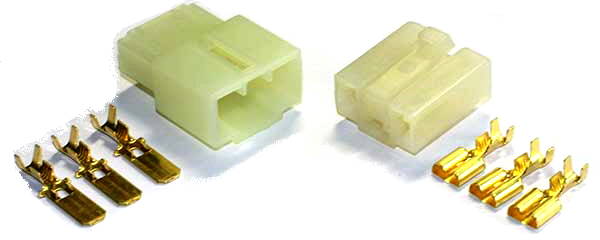

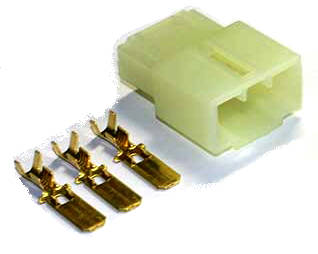

3 Pin Yazaki .250″ CN(A) Tang-less
Price range: $1.93 through $3.80
Description
3 Pin Yazaki 250 CN(A) tang-less connectors.
Small – 0.2-0.4 mm² (24-20AWG) – brass and plated
Medium – 0.5-2.0 mm² (20-14AWG) – brass and plated
Large – 1.25-3.0 mm² (16-12AWG) – brass and plated
These connectors all use the Tang-Less .250” terminals. They are available for 3 size ranges of wire, in traditional bronze/brass or tin plated bronze/brass.
These housings have terminal locks built in. Tough housings in natural nylon, color may vary.
Additional information
| Type | 3 Pin Female, 3 Pin Male, 3 Pin Set |
|---|---|
| Size | Small 24-20AWG, Medium 20-14AWG, Large 16-12AWG |
| Material | Brass, Tin Plated Brass |
