4 Pin SWP 070 Sealed Connector
Price range: $4.95 through $10.15
7222-7444-40, 7123-7444-40, 7157-7815-80
Description
4 Position Yazaki SWP .070″ ( SWP070 ) Waterproof Connector.
Two sizes to fit wires from .3mm – 2.0sqmm (24 – 14 AWG).
Small seals fit wires 0.3-.85 sqmm (24-18 AWG).
Large seals fit 0.85-2.0 sqmm (18-14 AWG).
Clip goes behind seals to lock seals in place.

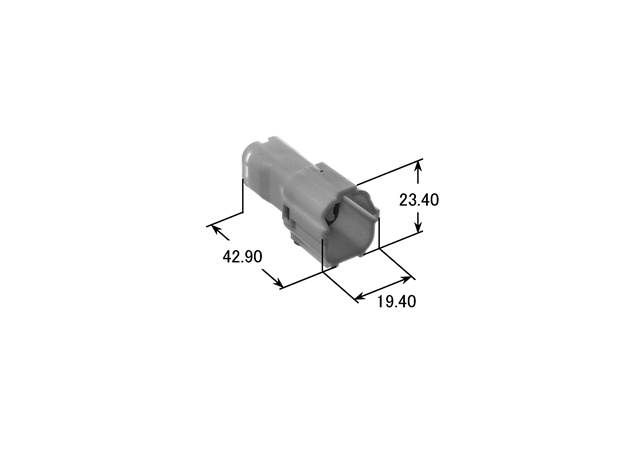

Yazaki PT NO: 7222-7444-40 ( Male Connector Shell )

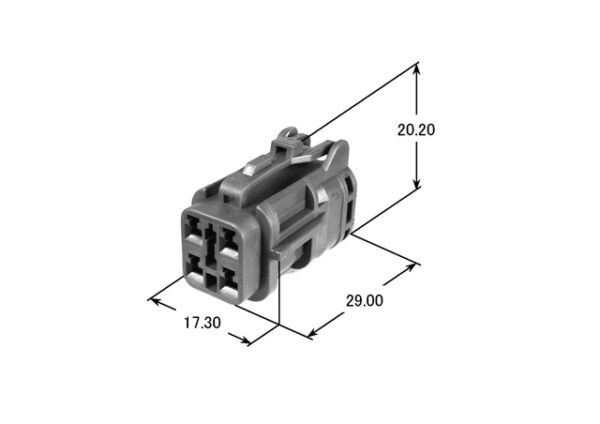

Yazaki PT NO 7123-7444-40 ( Female Connector Shell )
Yazaki PT NO 7157-7815-80 ( Seal Lock/Clip – Male & Female )
Additional information
| Size | 4 Pin Set – L, 4 Pin Set – S, 4 Pin Male – L, 4 Pin Male – S, 4 Pin Female – L, 4 Pin Female – S |
|---|
