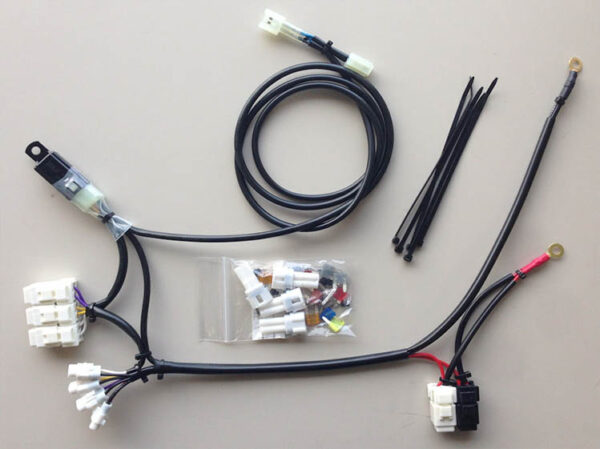

Suzuki GSX1000F 4CS Fuse Box Kit

Suzuki GSX1000F 4CS Fuse Box Kit

$64.95

x
SKU: N/A Category:

Description

This kit was developed for the 2018 GSX1000F, other models should be similar. Please contact us if you have a similar model. We would love to know all models this Kit will fit. This Kit uses the heated grip connector to switch its relay. With a passthrough you can still use the connector for heated grips or other purposes. These bikes have limited area to mount a fuse panel, but this kit makes installation easy.

FEATURES:

– 1 Unswitched circuit for battery charging, and power when bike is off

– 3 switched circuits go on and off with the bike

– each circuit has a 10A max capacity, total kit max capacity is 30A

– all components are sealed

– mating sealed connectors are included, extras available below

– fuseholders can each hold an extra fuse

– all wires and sheathing high temp type

– extensions, leads, and splitters available below

– 4 plugs are now included so you can make caps for two circuit outputs you aren’t using

Additional information

Connection Option

Battery M6 Ring Terminals, Powerlink Connector
