6 Pin Furukawa DEW 048 Sealed Connector -[Female]
$8.95
PB535-06027, PB547-06880
Description

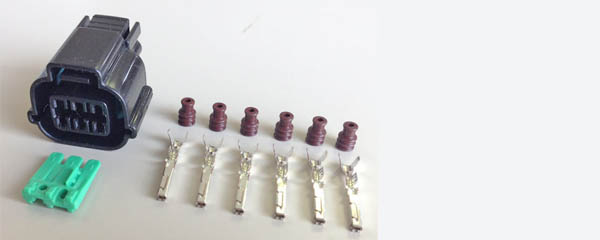

6 Position Furukawa-Electric DEW .048″ Sealed Connector
Fits wires 0.3 mm² to 1.25 mm² (22-16 AWG).
Complete with terminals, retainer, and seals.
Reference Information:
PB535-06027 Female Connector ( name DEW06F-B SA’Y )

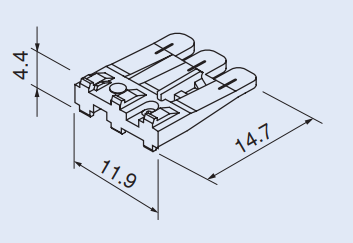

PB547-06880 Retainer ( name F/H DEW06F-LG )

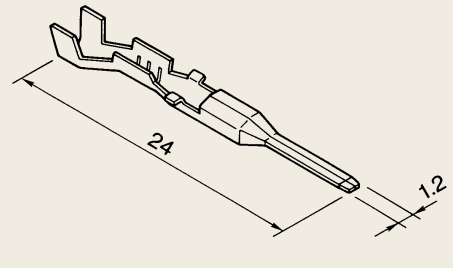

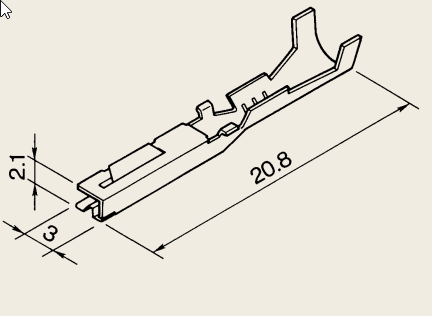

Terminals rated at 5.5A 1.2mm wide ( .048″ )
Additional information
| Size | DEW 6P Female Connector, DEW Female Terms, DEW Seals, DEW Plugs |
|---|
