6 Pin Sumitomo MT .090″ Connector ‘SPA’
Price range: $3.03 through $5.99
6242-5061, 6242-1061, Sumitomo
7123-1460, 7122-1460, Yazaki
Description
6 Position 090 MT Connector ‘Special A’ version. Fits wires from .5mm – 1.25mm (22 – 16 AWG). With complete set of terminals.
This connector set was manufactured by Sumitomo & Yazaki. They are interchangeable i.e. ( 100% compatible ).
Sumitomo Part Numbers

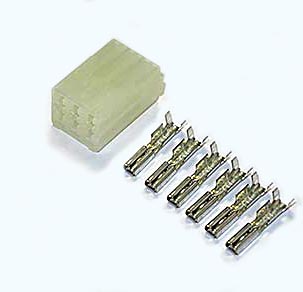

Female – 6242-5061,

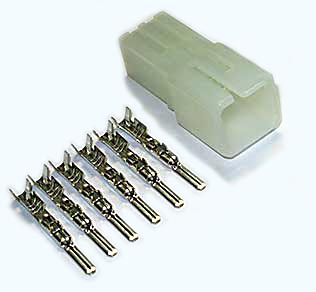

Male – 6242-1061,
Yazaki Part Numbers
Female – 7123-1460,
Male – 7122-1460,
Orders of 1000 or more are scheduled. Delivery term depends on stock but can be up to 1.5 months.
Additional information
| Type | Female, Male, Set |
|---|
