6 Pin SWP 070 Sealed Connector
Price range: $5.29 through $11.00
7222-7464-40, 7123-7464-40, 7157-7816-80
Description
6 Position Yazaki SWP .070″ ( SWP070 ) Waterproof Connector.
Two sizes to fit wires from .3mm – 2.0sqmm (24 – 14 AWG).
Small seals fit wires 0.3-.85 sqmm (24-18 AWG).
Large seals fit 0.85-2.0 sqmm (18-14 AWG).
Clip goes behind seals to lock seals in place.

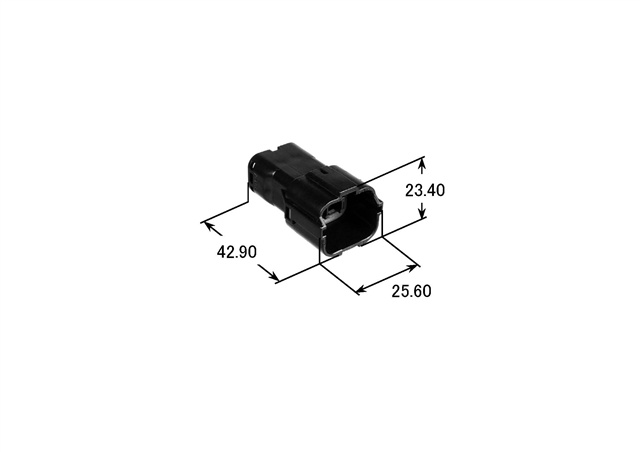

Yazaki PT NO: 7222-7464-40 ( Male Connector Shell )

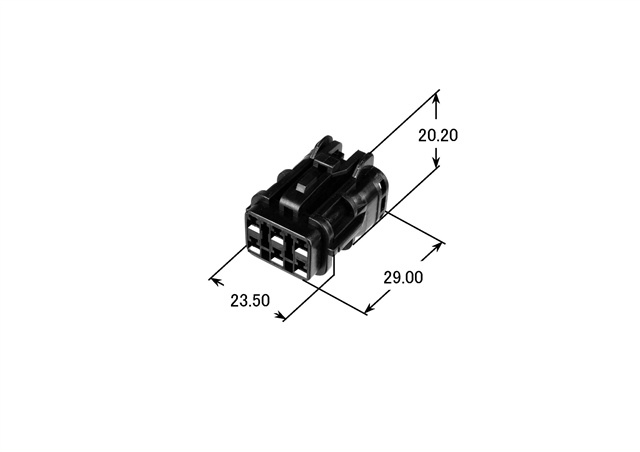

Yazaki PT NO 7123-7464-40 ( Female Connector Shell )
Yazaki PT NO 7157-7816-80 ( Seal Locl/Clip – Male & Female )
Additional information
| Size | 6 Pin Set – L, 6 Pin Set – S, 6 Pin Male – L, 6 Pin Male – S, 6 Pin Female – L, 6 Pin Female – S |
|---|
