9 Pin DL 090 Sealed Connector – ‘Hybrid’
$8.40
Description

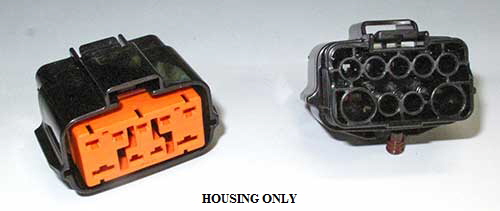

9 Position DL .090″ Sealed Connector –Â Hybrid. These are original Sumitomo, made in Japan quality connectors.
They are Hybrid because they hold two pin types. 7 pins are 090 types and rated to a max current of 15A and
2 pins are 187 type and rated to a max current of 30A. The retainer is orange is is included with the connector,
as are the seals and the terminals.
Large Pins ( 2 ) are 0.187″ . The larger terminals are the same as TS .187″ terminals.
For .090″ Terminals
L – Fits wires from 1.25mm – 2mm (16-14 AWG).
For .187″ Terminals
L – Fits wires from 2mm – 3mm (14-12 AWG).
.187″ Terminal & Seal Numbers
Large Male 8100-0465
Large Female 8100-0468
Large Seal 7165-0348 ( Grey )
Note: the major difference between original terminals and seal, and copies is quality. Copy terminals can loose 50%
of their contact force, after a few connections. Original terminals are tested though thousands of contact cycles. With
seals, originals typically are more elastic and better at sealing. The connectors themselves, are fire resistant, however
copies may not be ( depends on what plastic they were made from ).
Additional information
| TYPE | Female -L |
|---|
