Description

Battery Post Cap – [Insulator] for motorcycles and ATV’s. Available in 4 sizes and 2 materials. Sold as sets with one red and one black cap per set. Universal fit. Help protect your battery from short circuits and corrosion. Improve the look of your electrical system while improving safety. Made from silicone or high temperature rubber as stated.

When assembling, it is generally better to feed the wire though the battery post cap. Crimp on the terminal you will use to the cable. Then install the cable/terminal to the battery and pull the cap over the battery post. Be very careful, to avoid short circuits. Always disconnect the negative first when disconnecting and connect the negative last, when reconnecting.

Type 1 ( Largest )
Material: Rubber
Length: 66mm
Height: 27mm
Width: 27mm
Post Diameter Max: 22mm
Cable Diameter Max: 15mm

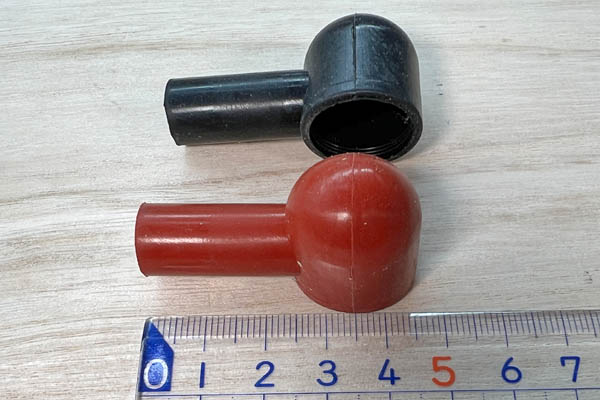

Type 2 ( Medium Big )
Material: Silicone Rubber
Length: 46mm
Height: 26mm
Width: 22mm
Post Diameter Max: 19mm
Cable Diameter Max: 9.5mm

Type 3 ( Medium Small )
Material: PVC Plastic
Length: 35mm
Height: 17mm
Width: 17mm
Post Diameter Max: 14mm
Cable Diameter Max: 8mm

Type 4 ( Small )
Material: Rubber
Length: 29mm
Height: 15mm
Width: 14mm
Post Diameter Max: 12mm
Cable Diameter Max: 6.5mm
