Description

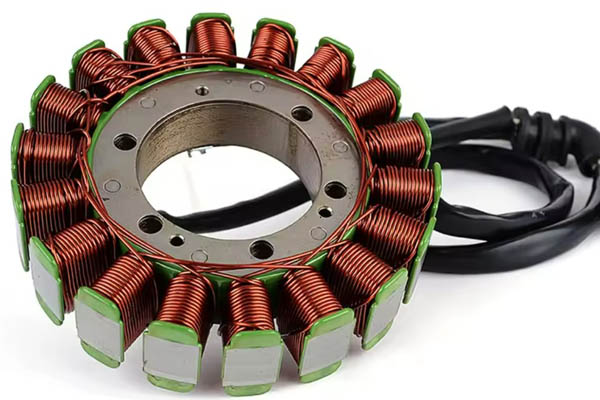

FJR1300 Stator Yamaha Aftermarket Equivalent part number – [1MC-81410-00-00]

Aftermarket stator for the FJR1300. Fits the following models
FJR1300P (2018)
FJR1300 (2013-2024)

Part 2 in the attached diagram. This is a non original aftermarket stator for the FJR1300.

We buy these stators from another manufacturer. We do the following test & improvements:
Check each phase impedance against Yamaha’ spec.
Check each phase impedance to ground against Yamaha’ spec.
Visually inspect the coils for coating nicks or issues.
Replace the output lead with Yazaki high temp wire & improve the lead to coil connection.
Modify the lead to coil connection with high temp tubing.
Replace the QLW connector, terminals and seals with a genuine Furukawa part.

Please note that shipping is not covered by warranty on this item. We provide 6 months warranty on this
stator, when used with a Shindengen rectifier. We recommend upgrading to an SH847 where possible as the
Series type SH847 reduces load on the stator while at the same time being more efficient.
