H4 Dual Relay Kit with Low Beam Cut

H4 Dual Relay Kit with Low Beam Cut

Price range: $87.95 through $97.95

x
SKU: N/A Categories: , Tags: , , , ,

Description

This Kit is specially for those who want the ability to cut their headlight at startup, or for any other reason (low battery etc).

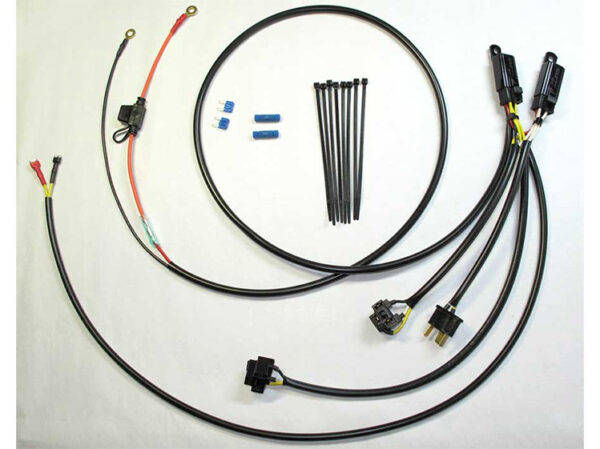

Shown with Battery Connect main leads (with fuse holder). Same as regular H4 Dual Kit but with built in wiring for a Headlight LO Beam Cut Switch (SPST). This Kit is specially for those who want the ability to cut their headlight at startup, or for any other reason (low battery etc). This Kit will switch the LO beam of BOTH headlights On and Off using a SPST switch. See my Switches Page for a switch for this Kit. Choose a Kit with switching connectors according to the switch you will use.

Switching takes place on the low current LO beam relay trigger wire, not on the headlight bulb wires, thereby giving you full power to both headlights when ON, without any Voltage drop inherent in in-line bulb lead switching.

Choice of H4 Coupler or a Sealed Posi-lock option for relay triggering – see H4 Coupler Connection above. Battery Connection option – has a fuse holder and terminals to connect directly to your battery. Fuse panel connection option – main lead wires are longer and sheathed to 6 in (15 cm) from ends (for aux fuse panels like my PC-8). The 3CS Connection HD option – has a main lead connector to plug into my 3 Circuit Solution HD (NOT for 3CS Sealed).

Switches are here.

Additional information

MAIN LEAD CONNECTION

With Fuse-holder Battery Connect, PC-8 Connection ( stripped wire ), 3CS HD Connection, PowerLink Connection
COUPLER OPTION

H4 Couplet into Bike H4 Socket, 2 Posi-Lock PL1416S with 3/8th Shrink-tube
SWITCH CONNECTOR

4mm Female Bullets, Female Spade Connectors .250"
