![H4 Single Headlight Relay Kit - [In Headlight Shell]](https://www.easternbeaver.com/wp-content/uploads/2023/07/h4s-s-900.jpg)

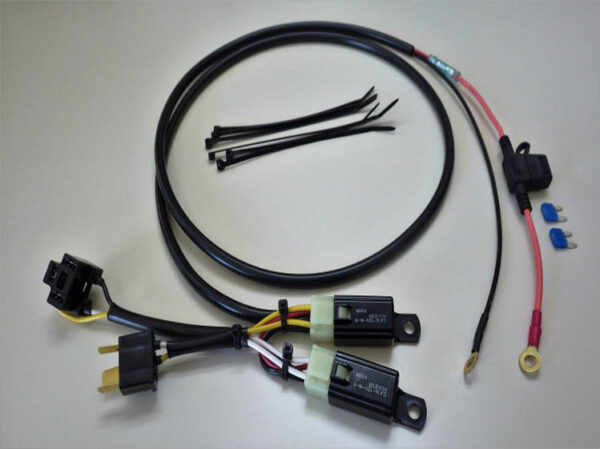

H4 Single Headlight Relay Kit – [In Headlight Shell]
Price range: $64.95 through $84.95
Description
H4 Single ‘In Shell’ Kit
This Kit is has short bulb leads for fitting the relays inside a headlight shell.
Specifications:
Main leads 61” (155 cm) AWG 14 (2 sqmm) high temp cross linked Yazaki wire covered with high temp sheathing
Bulb leads 6” (15 cm) – for installing the relays inside a headlight shell
Two heavy duty 20A Panasonic Relays socketed into the wiring
Cooper-Bussman ATM Fuse holder with two 15A fuses is removable with a bullet connector to make running wires easy
Includes cable ties to secure your Kit to your bike
Fuse panel Connection option – main lead wires are longer and sheathed to 6 in (15 cm) from ends.
Choice of H4 Coupler or a Sealed Posi-lock option for relay triggering – see H4 Coupler Connection above.
3 Circuit Solution option has a main lead connector to plug into my 3CS-HD.
Additional information
| MAIN LEAD CONNECTION | With Fuse-holder Battery Connect, PC-8 Connection ( stripped wire ), 3CS HD Connection, PowerLink Connection |
|---|---|
| COUPLER OPTION | H4 Couplet into Bike H4 Socket, 2 Posi-Lock PL1416S with 3/8th Shrink-tube |
| LO CUT CONNECTORS | No LO Cut, Female Spade .250", Female Spade .187", 4mm Bullets, Posi-Locks |
