Description

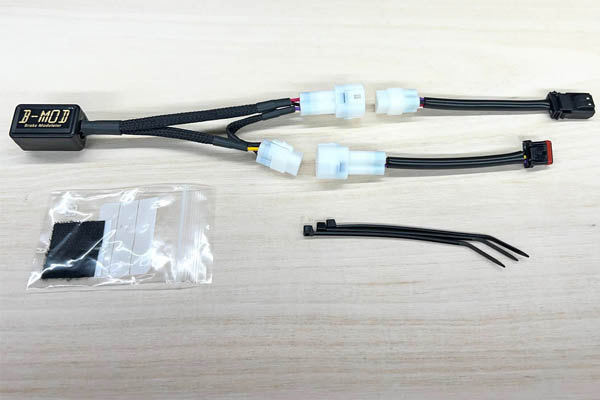

Harley Pan American – Brake Light Modulator. Fits Pan America 2021-2025. The B-Mod brake light modulator flashes the rear brake light for approx 1.5s before leaving the brake light 100% on. This helps the rider be noticed by following traffic. In cases where someone is tailgating, the brake can be applied very lightly and frequently, causing the B-Mod to constantly flash the rear brake. To have the modulator flash constantly, the brake lever must be lightly pulled about once every 1,5s or less. Plugs inline with tail light connector under the rear seat plastic tray.

Rated at 72 watts or 5Amps.

This is a plug and play kit, so there is no modifying the bike wiring. Completely reversible. Can be used to switch on other companies fuse boxes also.

To access the number plate light on the Pan America, you will have to remove the rear rack and turn it upside down. Towards the rear of the bike, you will see
three similar 2 wire connectors, held in place by plastic clips. The outside two are indicators. The inside one on the right side of the bike ( there are 2 side by side )
is the number plate light connector. Our cable plugs inline with this connection.
