Description

This Kit is fully plug and play and is designed for easy install and a perfect fit. This Kit has a switching connector that plugs in between the number plate light connector.

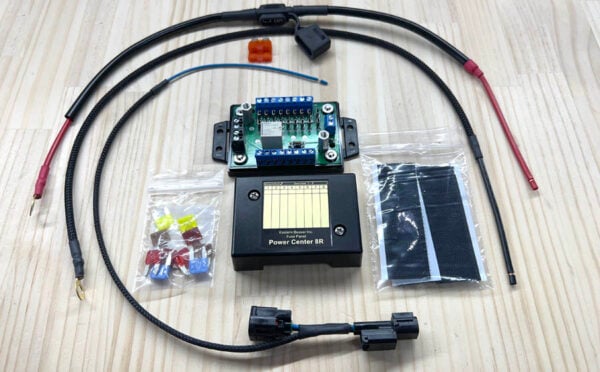

The PC-8R is a superb fuse panel, full of all the features you need and more! Easy to install, well protected, and with 8 mini fuses, one on each output circuit. Includes 8 output grounds too. The Kit is made from highest quality high temp wire and sheathing. Just strip your circuit wires and insert into the PC-8R outputs and tighten the screws. Both power and ground terminal blocks are built in.

CRF250L & CRF250 Rally MD47 2021-2023
CRF300L & CRF300 Rally MD47 2021-2023

PC-8R Specifications and Features:

• – 4 threaded insert nuts provide case mounting and fuse panel installation mounting points
• – comes with an assortment of ATM fuses, one for each output circuit and a few extras
• – 8 hot + outputs (2 un-switched circuits, 6 switched circuits)
• – Switched circuits are turned off when the bike is shut down. An un-switched circuit is always hot – can be used for charging the battery
• – 8 ground outputs – much better to ground your auxiliary circuits here than on a bike’s frame
• – maximum fuse panel capacity 30 Amps (30A on switched & 20A on un-switched ) EG 25A Switched & 5A Un-switched  ( total 30A Max ) or 30A Switched & 0A Un-switched )
  ( note if un-switched are used for battery charging, i.e. not at the same time as the bike is running, then un-switched can be up to 20A with Switched at 30A ).
• – maximum individual circuit capacity 20 Amps (15A continuous)
• – maximum output wire size 12 AWG (3 sqmm)
• – all hardware is stainless steel (except input posts which are tin plated steel)
• – black satin polycarbonate cover makes unit splash-proof yet allows it to breathe and stay cool
• – cover mounting tabs on each end can be broken off or left on, depending on mounting choice
• – simple robust design means no overheating and no problems with vibration
• – I designed this fuse panel with ease of mounting a priority. Therefore there are many mounting options: Dual Lock on back of case, fine threaded screws from back of panel, self tapping screws from inside through PCB inserts to panel, or nuts and screws on the case mounting ears at each end of the case.
• PC-8R Installation Manual

Available for L and Rally versions
MD38 uses 6 pin tail light splitter.
MD44 and MD47 models use 2 pin number plate splitter.

CRF250L MD38 2012-2016
CRF250L & CRF250 Rally MD44  2017-2020
CRF250L & CRF250 Rally MD47 2021-2023
CRF300L & CRF300 Rally MD47 2021-2023
