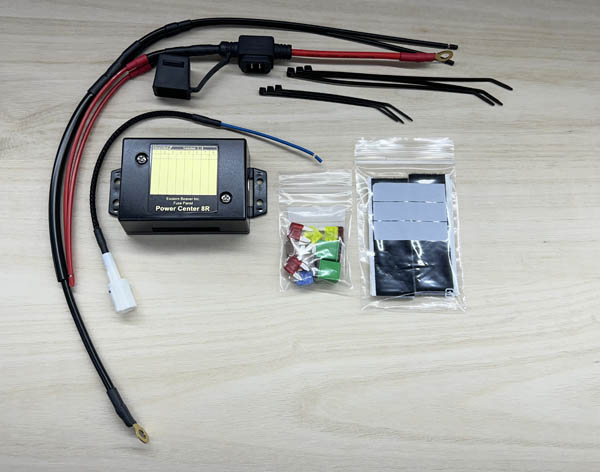

PC-8R Fuse Box – ‘Positive Ground’
$105.00
PC-8R-POS
Description
This version of the PC-8R fuse box can be used on positive earth ( Chassis ) motorcycles or vehicles, such as old Norton’s, Triumph’s or Harley’s.
Connection Note:
When installing on a positive earth vehicle, the battery (+) connects to the PC-8R GND input & the battery (-) connects to the PC-8R 12v input.
The switched input would be a -12v signal i.e. not earth. Also note, the PC-8R has a loop though on the switched input.
Only the -12v switched signal needs to be connected, that is, no chassis connection on the switched input.
