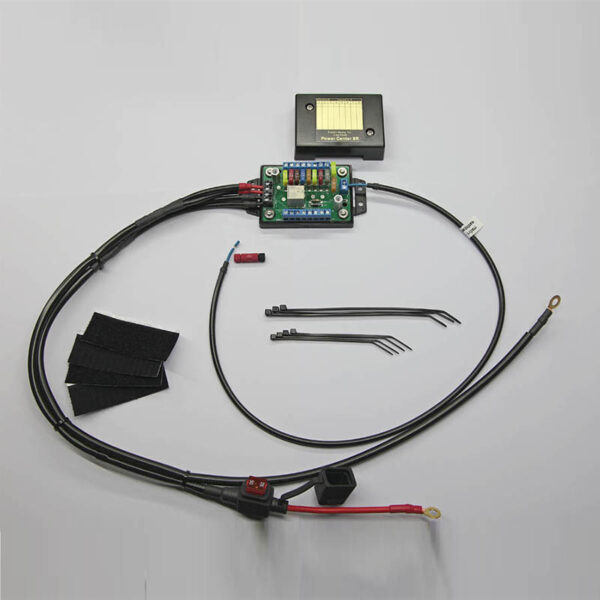

PC-8R Fuse Box With Wiring Kit – 40A

PC-8R Fuse Box With Wiring Kit – 40A

Price range: $120.95 through $145.95

x
SKU: 10-FB-PC8R-40A Categories: , , Tags: , , , ,

Description

There are two types of wiring kit for the PC-8R. The switching lead is the same for both type kits. The main difference is the current capacity.
40 Amp kits use a LP JCASE fuse and 10AWG wire, whereas the 30A kits use a Bussmann type ATO fuse holder and 12AWG wire. For most bikes up to 600cc the 30Amp version is more than sufficient. For Adventure and larger cruiser type bikes, we recommend the 40A wiring kit or the PC-8 50A Kit

Specifications and Features:

– 4 threaded insert nuts provide case mounting and fuse panel installation mounting points
– comes with an assortment of ATM fuses, one for each output circuit and a few extras
– 8 hot + outputs (2 un-switched circuits, 6 switched circuits)
– Switched circuits are turned off when the bike is shut down. An un-switched circuit is always hot – can be used for charging the battery
– 8 ground outputs – much better to ground your auxiliary circuits here than on a bike’s frame
– maximum fuse panel capacity 40 Amps
– 30 Amp max switched. 20A max un-switched ( combination must be under 40 Amp total )
– maximum output circuit capacity 15A continuous
– maximum output wire size 12 AWG (3 sqmm)
– Spare fuse holder inside the PC-8R case ( can be use to hold 2 spare fuses )
– all hardware is stainless steel (except input posts which are tin plated steel)
– black satin polycarbonate cover makes unit splash-proof yet allows it to breathe and stay cool
– cover mounting tabs on each end can be broken off or left on, depending on mounting choice
– simple robust design means no overheating and no problems with vibration

Additional information

BATTERY CONNECTION

M6 Ring Terminals to Battery, PowerLink to Battery
BATTERY CABLE LENGTH

6" (15cm), 12" (30cm), 18" (46cm), 24" (61cm), 30" (76cm), 42" (107cm), 54" (137cm), 66 (168cm), 74 (188cm), 74 (188cm) FJR POS+6
