Powerlink Battery Leads Only for CB500X
$19.95
Leads only
aa-pl-ld-batt-cb500x
Description
It is convenient to mount the PC-8 with Dual Lock industrial velcro. You can buy some at the bottom of this page.

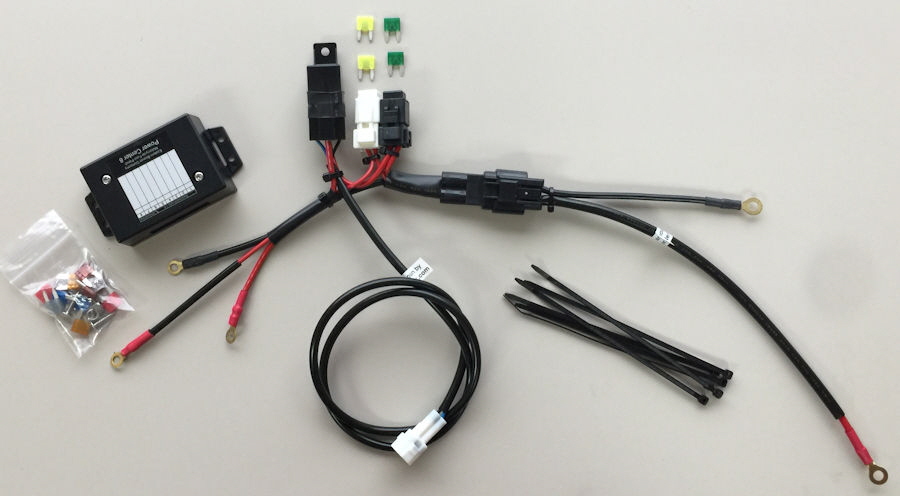

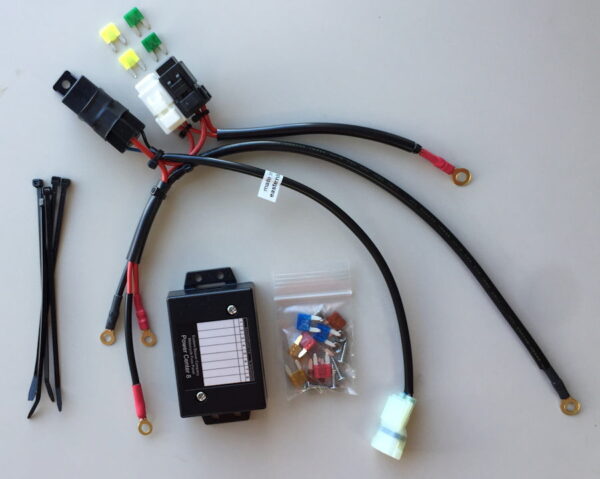

PC-8 Specifications and Features:
– 4 threaded insert nuts provide case mounting and fuse panel installation mounting points
– comes with an assortment of ATM fuses, one for each output circuit and a few extras
– 8 hot + outputs (2 unswitched circuits, 6 switched circuits)
– Switched circuits are turned off when the bike is shut down. An unswitched circuit is always hot – can be used for charging the battery
– 8 ground outputs – much better to ground your auxiliary circuits here than on a bike’s frame
– maximum fuse panel capacity 50 Amps (30A/20A – switched/unswitched)
– maximum circuit capacity 20 Amps (15A continuous)
– maximum output wire size 12 AWG (3 sqmm)
– all hardware is stainless steel (except input posts which are tin plated steel)
– black satin polycarbonate cover makes unit splash-proof yet allows it to breathe and stay cool
– cover mounting tabs on each end can be broken off or left on, depending on mounting choice
– simple robust design means no overheating and no problems with vibration
– We designed this fuse panel with ease of mounting a priority. Therefore there are many mounting options: Dual Lock on back of case, fine threaded screws from back of panel, self tapping screws from inside through PCB inserts to panel, or nuts and screws on the case mounting ears at each end of the case.
Installation page
Additional information
| Battery Lead Lengths | Both Leads Same Length, Positive Lead Plus 6 Inches |
|---|
