Rectifier DC Side Fused Cable – QLW 3 Pin
$29.95
Description

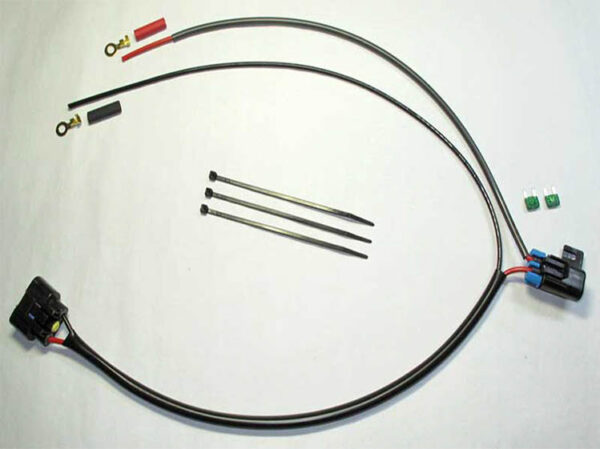

Part A – R/R Unit to Battery – 36” (92cm) 12 gauge 100 C wire, sealed fuse holder, and high temp sheathing. Battery ring terminals and Sumitube shrink-tube are included, as well as cable ties and two 30A fuses. Hook-up is direct to battery, bypassing the stock 30A fuse holder on the bike which can be a problem with age.

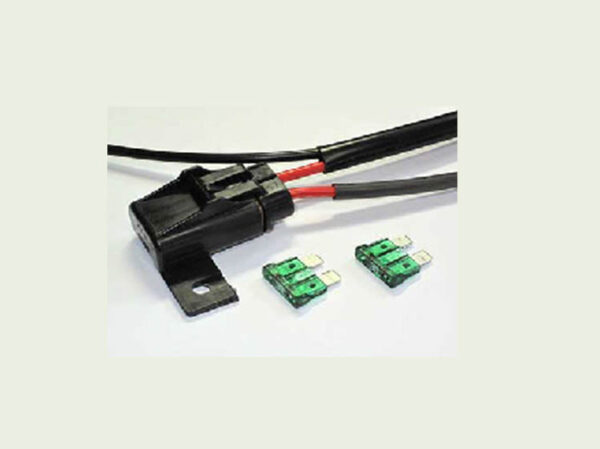

Part A is now only available with the Metri-Pack 630 ATO/ATF full size blade fuse holder shown to the right. The MP280 is a good fuse holder, but for this application I feel the larger size fuse gives better conduction and less heat.
– battery terminals are left off so you can trim wires to fit – solder them on for best results
– if you use crimp-on battery terminals, you MUST use a good crimper for a good connection, this is VERY IMPORTANT! For best results, crimp/pinch and solder on the ring terminals that are included with this Kit. And make sure you use the Sumi-tube on the terminals for wire strain relief and moisture resistance. Put the Sumi-tube pieces over the wires before attaching the ring terminals!
